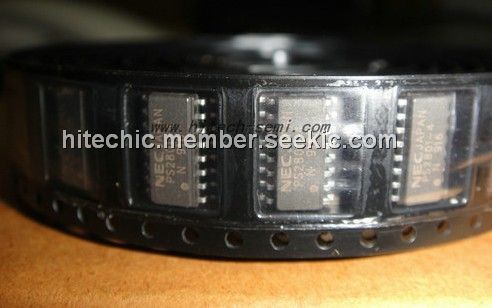

Product Summary
The PS2801 is a high isolation voltage SOP photocoupler. It contains a GaAs light emitting diode and an NPN silicon phototransistor in a plastic SOP for high density applications. This package has shield effect to cut off ambient light. The applications of the PS2801 are Programmable logic controllers, Measuring instruments, Power supply, Hybrid IC.
Parametrics
PS2801 absolute maximum ratings: (1)Forward Current (DC):50mA; (2)Reverse Voltage:6V; (3)Peak Forward Current:1A; (4)Collector to Emitter Voltage: 80V; (5)Emitter to Collector Voltage: 6V; (6)Collector Current:50mA/ch; (7)Power Dissipation Derating:1.2mW/℃; (8)Power Dissipation:120mW/ch; (9)Isolation Voltage:2 500 Vr.m.s.; (10)Operating Ambient Temperature:-55℃ to +100℃; (11)Storage Temperature:-55℃ to +150℃.
Features
PS2801 features: (1)High isolation voltage (BV = 2 500 Vr.m.s.); (2)Small and thin package (4,16-pin SOP, Pin pitch 1.27 mm); (3)High collector to emitter voltage (VCEO = 80 V); (4)High-speed switching (tr = 3 μs TYP., tf = 5 μs TYP.); (5)UL approved: File No. E72422 (S); (6)VDE0884 approved (Option): PS2801-4 only; (7)Operating number of taping product: PS2801-1-F3, F4, PS2801-4-F3, F4.

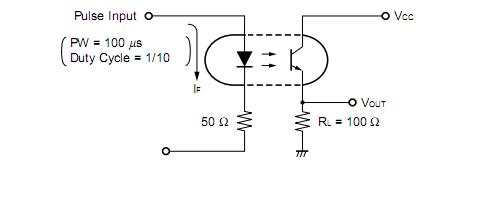

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

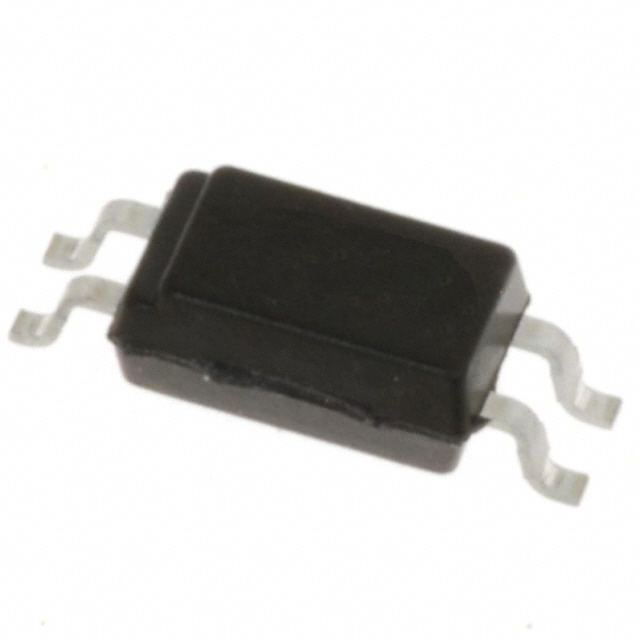

 PS2801-1 |
NEC/CEL |
Transistor Output Optocouplers Hi-Iso Photo 1-Ch |
Data Sheet |
Negotiable |
|
||||||||||||||
 |
PS2801-1-A |
CEL |
Transistor Output Optocouplers Hi-Iso Photo 1-Ch |
Data Sheet |
|
|
||||||||||||||
 |
PS2801-1-F3 |
|
OPTOISOLATOR 1CH TRANS OUT 4SSOP |
Data Sheet |
Negotiable |
|
||||||||||||||
|
PS2801-1-F3-A |
CEL |
Transistor Output Optocouplers Hi-Iso Photo 1-Ch |
Data Sheet |
|
|
||||||||||||||
|
PS2801-1-F3-K-A |
CEL |
Transistor Output Optocouplers Hi-Iso Photo 1-Ch |
Data Sheet |
|
|
||||||||||||||
|
PS2801-1-F3-L-A |
CEL |
Transistor Output Optocouplers Hi-Iso Photo 1-Ch |
Data Sheet |
|
|
||||||||||||||
|
PS2801-1-F3-P-A |
CEL |
Transistor Output Optocouplers Hi-Iso Photo 1-Ch |
Data Sheet |
|
|
||||||||||||||
|
PS2801-1-F3-Y-A |
CEL |
Transistor Output Optocouplers SNGL Tr DC Couplr |
Data Sheet |
|
|
||||||||||||||
