Product Summary

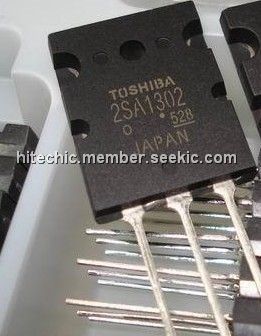

The 2SA1302 is a Silicon PNP Epitaxial Type power transistor. The applications of it are General Purpose Switching and Amplifier Applications.
Parametrics
2SA1302 absolute maximum ratings: (1)Collector-Base Voltage:-200V; (2)Collector-Emitter Voltage:-200V; (3)Emitter-Base Voltage:-5V; (4)Collector Current:-15A; (5)Base Current:-1.5A; (6)Collector Power Dissipation:150W; (7)Junction Temperature:150℃; (8)Storage Temperature Range:-55 to 150℃.
Features
2SA1302 features: (1)Complementary to 2SC3281; (2)Recommended for 100W High Fidelity Audio Frequency: Amplifier Output Stage.

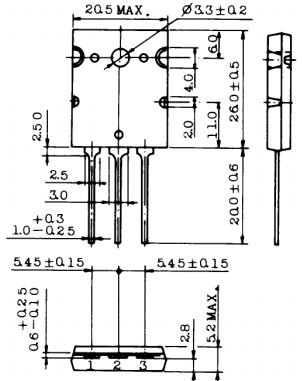

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 2SA1302-O |
|
TRANS PNP -200V -15A TO-3PL |
Data Sheet |
Negotiable |
|
||||
 |
2SA1302 |
Other |
|
Data Sheet |
Negotiable |
|
||||
