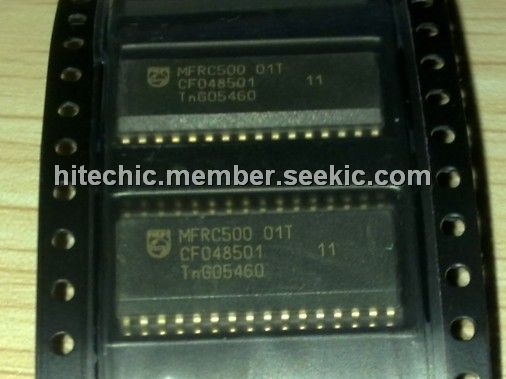

Product Summary

The MFRC500 is a highly integrated reader IC for contactless communication on 13,56MHz. This new reader IC utilises an outstanding modulation and demodulation concept completely integrated for all major kinds of passive contactless communication methods and protocols on 13,56MHz. The applications of the MFRC500 include Public transport terminals, Handheld terminals, On board units, Contactless PC terminals, Metering, Contactless public phones.

Parametrics

MFRC500 absolute maximum ratings: (1)Digital Supply Voltage: 4.5 to 5.5 V; (2)Analog Supply Voltage: 4.5 to 5.5 V; (3)Transmitter Supply Voltage: 3.3 to 5.5 V; (4)Operating Digital Supply Current: 6 mA; (5)Operating Analog Supply Current: 25 mA; (6)Operating Buffered Antenna Driver Supply Current: 150 mA.

Features

MFRC500 features: (1)Highly integrated analog circuitry to decode card response; (2)Buffered output drivers to connect an antenna with minimum number of external components; (3)Proximity operating distance (up to 100 mm); (4)Fast internal oscillator buffer to connect 13.56 MHz quartz; (5)Clock frequency monitoring; (6)Hard reset with low power functions; (7)Power down mode per software.

Diagrams

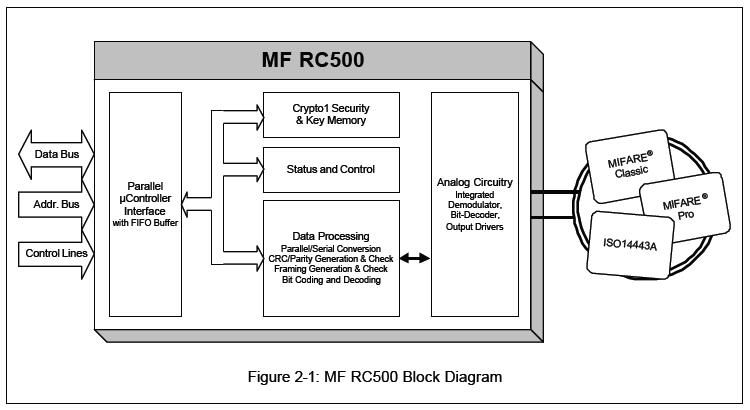

MFRC500 block diagram
