Product Summary

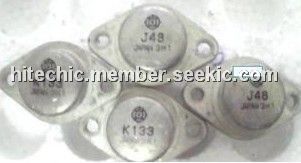

The 2SJ48 is a kind of low frequency power amplifier with silicon P-channel MOSFET, and it is complementary pair with 2SK133.
Parametrics
2SJ48 absolute maximum ratings: (1)Drain-source voltage: -120V; (2)Gate-source voltage: ±14V; (3)Drain current: -7A; (4)Body-drain diode reverse drain current: -7A; (5)Channel dissipation: 100W; (6)Channel temperature: 150℃; (7)Storage temperature: -55 to +150℃.
Features
2SJ48 features: (1)High power gain; (2)Excellent frequency response; (3)High speed switching; (4)Wide area of safe operation; (5)Enhancement-mode; (6)Good complementary characteristics; (7)Equipped with Gate protection diodes.

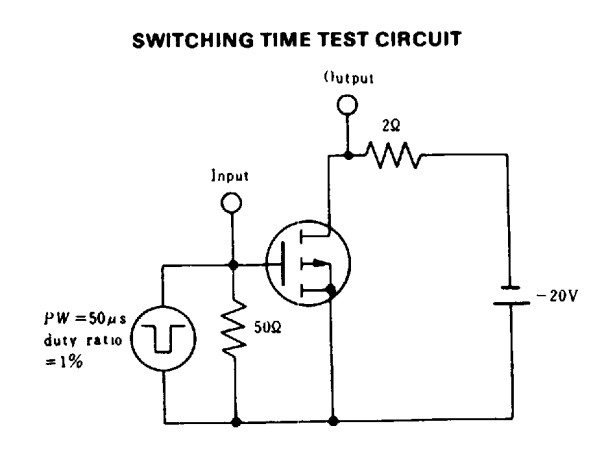

Diagrams
