Product Summary

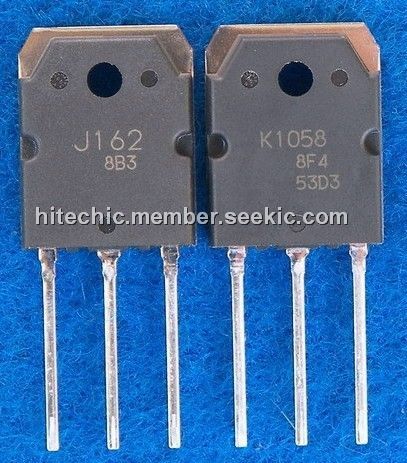

The 2SK1058 is a silicon N-channel MOSFET for low frequency power amplifier.
Parametrics
2SK1058 absolute maximum ratings: (1)Drain to source voltage: 160 V; (2)Gate to source voltage VGSS: ±15 V; (3)Drain current ID: 7A; (4)Body to drain diode reverse drain current IDR: 7A; (5)Channel dissipation Pch: 100 W; (6)Channel temperature Tch: 150 ℃; (7)Storage temperature Tstg: –55 to +150℃.
Features
2SK1058 features: (1)Good frequency characteristic; (2)High speed switching; (3)Wide area of safe operation; (4)Enhancement-mode; (5)Good complementary characteristics; (6)Equipped with gate protection diodes; (7)Suitable for audio power amplifier.

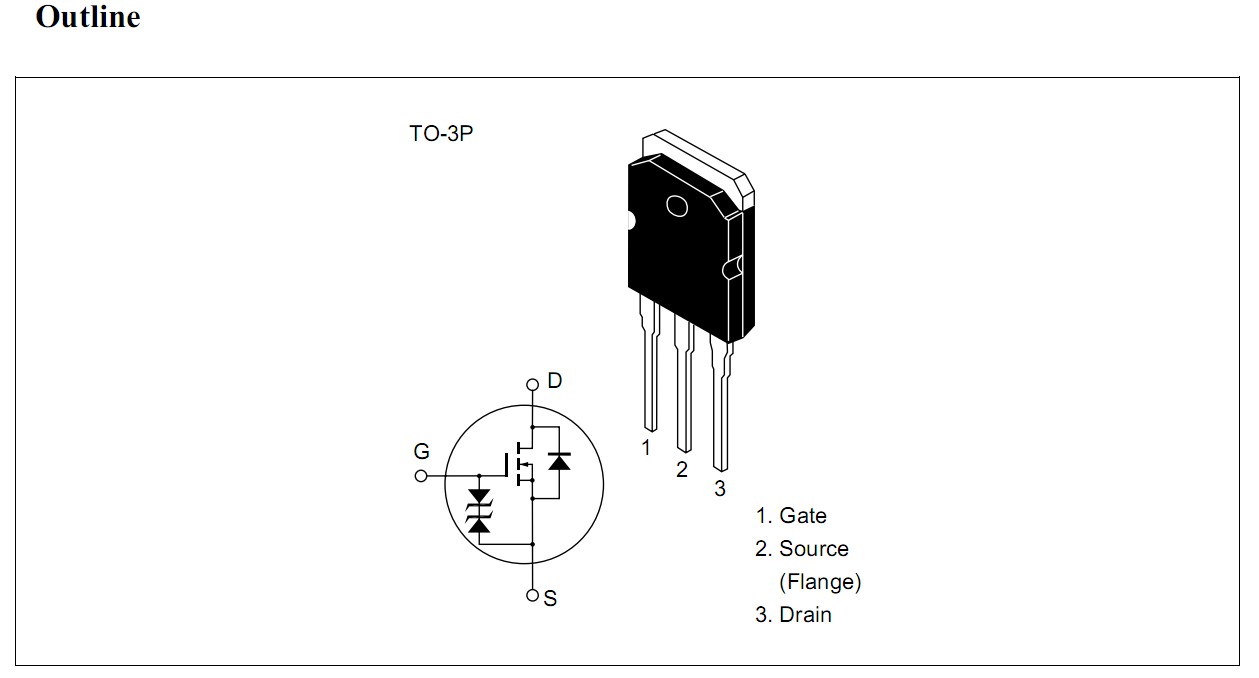

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 2SK1058 |
Other |
|
Data Sheet |
Negotiable |
|
||||||
 |
2SK1058-E |
|
MOSFET N-CH 160V 7A TO-3P |
Data Sheet |
|
|
||||||
