Product Summary
The MPSA92 is a PNP High Voltage Transistor in a TO-92 plastic package.
Parametrics
MPSA92 absolute maximum ratings: (1)VCBO collector-base voltage open emitter: -300V; (2)VCEO collector-emitter voltage open base: -300V; (3)VEBO emitter-base voltage open collector: -5V; (4)IC collector current (DC): -100mA; (5)ICM peak collector current: -200mA; (6)IBM peak base current: -100mA; (7)Ptot total power dissipation Tamb ≤ 25 ℃: 625mW; (8)Tstg storage temperature: -65 to +150℃; (9)Tj, junction temperature: 150℃; (10)Tamb, operating ambient temperature: -65 to +150℃.
Features
MPSA92 features: (1)Low current (max. 100 mA); (2)High voltage (max. 300 V).

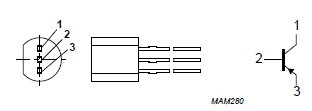

Diagrams
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
![]() MPSA92 |
![]() Central Semiconductor |
![]() Transistors Bipolar (BJT) PNP Gen Pur SS |
![]() Data Sheet |
![]()
|
|
||||||||||||
![]() |
![]() MPSA92 AMO |
![]() NXP Semiconductors |
![]() Transistors Bipolar (BJT) TRANS HV AMMO RADIAL |
![]() Data Sheet |
![]() Negotiable |
|
||||||||||||
![]() |
![]() MPSA92 T/R |
![]() NXP Semiconductors |
![]() Transistors Bipolar (BJT) TRANS HV TAPE RADIAL |
![]() Data Sheet |
![]() Negotiable |
|
||||||||||||
![]() |
![]() MPSA92,116 |
![]() |
![]() TRANS PNP 300V 500MA SOT54 |
![]() Data Sheet |
![]() Negotiable |
|
||||||||||||
![]() |
![]() MPSA92,126 |
![]() |
![]() TRANS PNP 300V 500MA SOT54 |
![]() Data Sheet |
![]() Negotiable |
|
||||||||||||
![]() |
![]() MPSA92,412 |
![]() |
![]() TRANS PNP 300V 500MA SOT54 |
![]() Data Sheet |
![]() Negotiable |
|
||||||||||||
![]() |
![]() MPSA92_D26Z |
![]() Fairchild Semiconductor |
![]() Transistors Bipolar (BJT) PNP Transistor High Voltage |
![]() Data Sheet |
![]() Negotiable |
|
||||||||||||
![]() |
![]() MPSA92_D26Z_Q |
![]() Fairchild Semiconductor |
![]() Transistors Bipolar (BJT) PNP Transistor High Voltage |
![]() Data Sheet |
![]() Negotiable |
|
