Product Summary

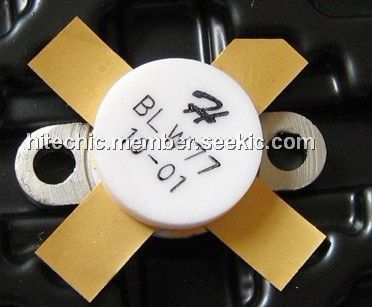

The BLW77 is an NPN silicon RF power transistor. It is designed for use in class-AB or class-B operated high power transmitters in the H.F. and V.H.F bands and, as a Linear amplifier in the H.F. band.
Parametrics
BLW77 absolute maximum ratings: (1)IC: 12 A; (2)VCB: 70 V; (3)VCE: 35 V; (4)PDISS: 245 W @ TC = 25 ℃; (5)TJ: -65 ℃ to +200 ℃; (6)TSTG: -65 ℃ to +150 ℃; (7)θJC: 0.71 ℃/W.
Features
BLW77 features: (1)PG = 12 dB min. at 15-30 W/1.6-28 MHz; (2)Common Emitter; (3)Omnigold Metalization System.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 BLW77 |
Advanced Semiconductor, Inc. |
Transistors RF Bipolar Power RF Transistor |
Data Sheet |
|
|
||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||
|
BLW75 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
|
BLW77 |
Advanced Semiconductor, Inc. |
Transistors RF Bipolar Power RF Transistor |
Data Sheet |
|
|
||||||||||||
|
BLW78 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
|
BLW76 |
TriQuint Semiconductor |
Transistors RF Bipolar Power RF Bipolar Trans |
Data Sheet |
Negotiable |
|
||||||||||||
