Product Summary

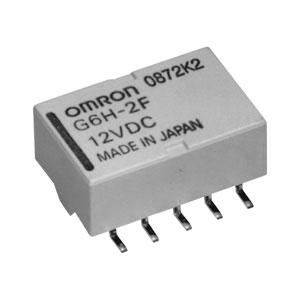

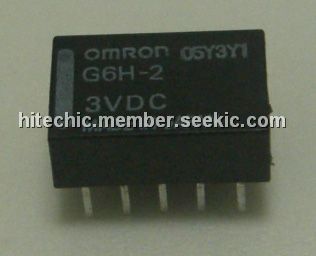

The G6H-2 is a ultra-compact, ultra-sensitive DPDT relay.
Parametrics
G6H-2 ratings: (1)Load: Resistive load (cosφ = 1); (2)Rated load: 0.5 A at 125 VAC; 1 A at 30 VDC; (3)Contact material: Ag (Au-Alloy); (4)Rated carry current: 1 A; (5)Max. switching voltage: 125 VAC, 110 VDC; (6)Max. switching current: 1 A; (7)Max. switching power: 62.5 VA, 33 W; (8)Failure rate (reference value): 10 μA at 10 mVDC.
Features
G6H-2 features: (1)Compact size and low 5 mm profile.; (2)Low thermoelectromotive force.; (3)Low magnetic interference enables high-density mounting.; (4)Utilizes Omron moving-loop design.; (5)Highly stable magnetic circuit for latching endurance and excellent resistance to vibration and shock.; (6)High sensitivity with low nominal power consumption.; (7)Single or dual coil latching types available.; (8)RoHS Compliant.

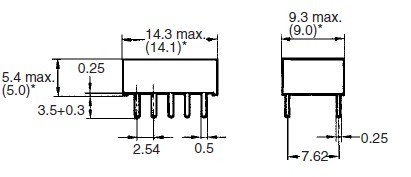

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 G6H-2 |
Other |
|
Data Sheet |
Negotiable |
|
||||
 |
G6H-2 DC18 |
Omron Electronics |
Low Signal Relays - PCB LOW SIGNAL RELAY |
Data Sheet |
Negotiable |
|
||||
 |
G6H-2 DC3 |
|
RELAY TELECOM DPDT 1A 3V |
Data Sheet |
Negotiable |
|
||||
 |
G6H-2 DC4.5 |
Omron Electronics |
Low Signal Relays - PCB LOW SIGNAL RELAY |
Data Sheet |
Negotiable |
|
||||
|
G6H-2-1 DC5 |
Omron Electronics |
Low Signal Relays - PCB LOW SIGNAL RELAY |
Data Sheet |
Negotiable |
|
||||
|
G6H-2-100 |
Other |
|
Data Sheet |
Negotiable |
|
||||
 |
G6H-2-100 DC5 |
Omron Electronics |
Low Signal Relays - PCB 1A Relay PC MNT DPDT 5VDC |
Data Sheet |
Negotiable |
|
||||
|
G6H-2-100-DC12 |
|
RELAY TELECOM DPDT 1A 12V |
Data Sheet |
Negotiable |
|
||||
