Product Summary

The BLX13C is an NPN silicon RF power transistor. It is designed for 28 V, Linear Amplifier, class A and AB in the HF and VHF bands.

Parametrics

BLX13C absolute maximum ratings: (1)IC: 3.0 A; (2)VCB: 65 V; (3)VCE: 36 V; (4)PDISS: 73 W @ TC = 25 ℃; (5)TJ: -65 ℃ to +200 ℃; (6)TSTG: -65 ℃ to +150 ℃; (7)θJC: 2.39 ℃/W.

Features

BLX13C features: (1)PG = 21 dB Typical at 25 W/ 28 MHz; (2)Omnigoldl Metallization System.

Diagrams

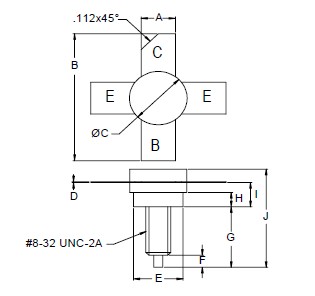

BLX13C dimensions

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
BLX13C
BLX13C
Advanced Semiconductor, Inc.
Transistors RF Bipolar Power RF Transistor
Data Sheet
0-1: $43.20
1-10: $36.00
10-25: $32.40
25-50: $28.80
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
BLX13C
BLX13C
Advanced Semiconductor, Inc.
Transistors RF Bipolar Power RF Transistor
Data Sheet
0-1: $43.20
1-10: $36.00
10-25: $32.40
25-50: $28.80
