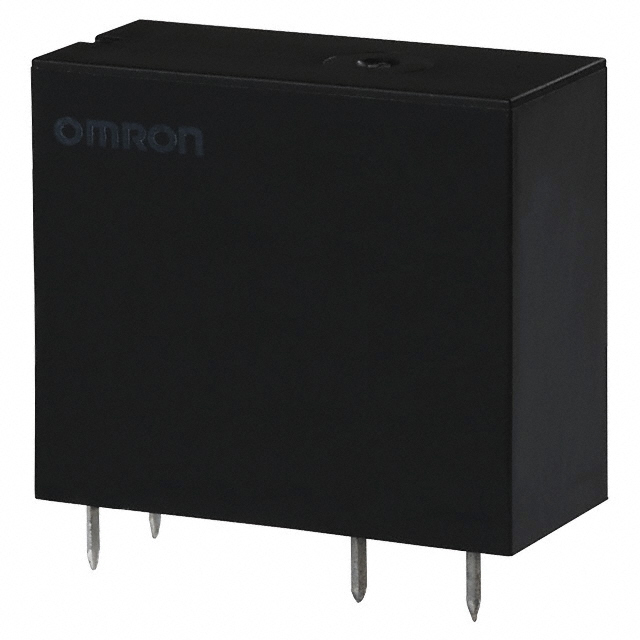

Product Summary

The G2R-1 is a power relay for a variety of purposes with various models.

Parametrics

G2R-1 characteristics: (1)Contact resistance: 1 pole: 30ΩW max. (high-capacity type: 100ΩW max.); 2 poles: 50ΩW max.; (2)Operate (set) time: 15ms max.; (3)Release (reset) time: AC: 10ms max.; DC: 5ms max. (w/built-in diode: 20ms max.); (4)Max. operating frequency: Mechanical: 18,000 operations/hr; Electrical: 1,800 operations/hr (under rated load); (5)Insulation resistance: 1,000MΩ min. (at 500 VDC); (6)Endurance: Mechanical: AC coil: 10,000,000 operations min.; DC coil: 20,000,000 operations min. (at 18,000 operations/hr); Electrical: 100,000 operations min. (at 1,800 operations/hr under rated load); (7)Ambient temperature: Operating: -40℃ to 70℃ (with no icing); (8)Ambient humidity: Operating: 5% to 85%; (9)Weight: Approx. 17g (plug-in terminal: approx. 20g).

Features

G2R-1 features: (1)Conforms to VDE0435 (VDE approval: C250 insulation grade), UL508, CSA22.2, SEV, SEMKO.; (2)Meets VDE0700 requirements for household products according to VDE0110.; (3)Clearance and creepage distance: 8 mm/8 m.; (4)Models with CTI250 material available.; (5)High-sensitivity (360 mW) and high-capacity(16 A) types available.; (6)Double-winding latching type available.; (7)Plug-in with test button and quick-connect terminals available.; (8)Highly functional socket available.

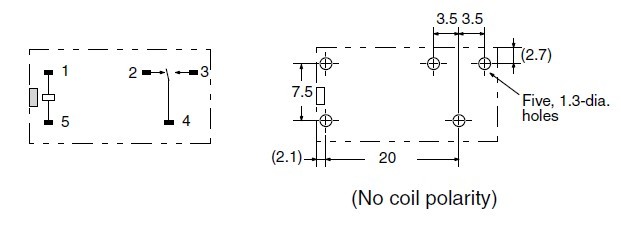

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
G2R-1 12/24VDC
G2R-1 12/24VDC

Other


Data Sheet

Negotiable
G2R-1 AC200/(220)
G2R-1 AC200/(220)

Omron Electronics

General Purpose / Industrial Relays SPDT 10A Thru-Hole 200/220VAC

Data Sheet

0-60: $7.07
60-100: $6.52
100-200: $6.05
200-500: $5.65

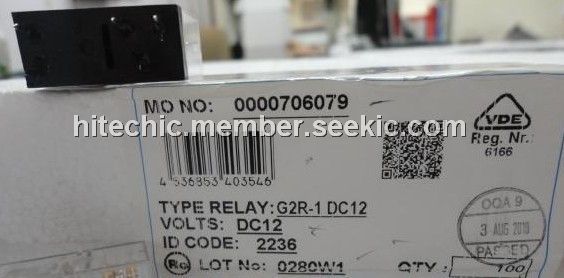

G2R-1 DC12
G2R-1 DC12

Other


Data Sheet

Negotiable
G2R-1 DC20
G2R-1 DC20

Omron Electronics

General Purpose / Industrial Relays SPDT 10A Thru-Hole 20VDC

Data Sheet

0-1: $2.82
1-25: $2.56
25-50: $2.35
50-100: $2.17
G2R-1 DC3
G2R-1 DC3

Omron Electronics

General Purpose / Industrial Relays Power PCB Relay

Data Sheet

0-1: $2.48
1-25: $2.35
25-50: $2.16
50-100: $1.97
G2R-1 DC5
G2R-1 DC5

Other


Data Sheet

Negotiable
G2R-1 DC9
G2R-1 DC9

Omron Electronics

General Purpose / Industrial Relays SPDT 10A Thru-Hole 9VDC

Data Sheet

0-1: $2.60
1-25: $2.36
25-50: $2.17
50-100: $2.00
G2R-14 DC100
G2R-14 DC100


RELAY GEN PURPOSE SPDT 10A 100V

Data Sheet

0-100: $5.94
