Product Summary

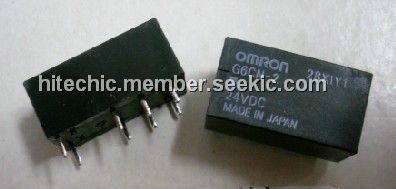

The G6CN-2 is a power PCB relay.

Parametrics

G6CN-2 characteristics: (1)Contact resistance: 30 ΩW max.; (2)Operate (set) time: 10 ms max. (mean value: approx. 5 ms); (3)Release (reset) time: 10 ms max. (mean value: approx. 2 ms); (4)Bounce time Operate: Approx. 3 ms; Release: Approx. 3 ms; (5)Operating frequency Mechanical: 18,000 operations/hour; Electrical: 1,800 operations/hour (under rated load); (6)Insulation resistance: 1,000 ΩW min. (at 500 VDC); (7)Ambient temperature: -25 to 70℃ (-13°to 158°F); (8)Humidity: 45 to 85% RH; (9)Service life Mechanical: 50 million operations min. (at operating frequency of 18,000 operations/hour); (10)Weight: Approx. 5.6 g (0.20 oz).

Features

G6CN-2 features: (1)Subminiature 20.07 L x 14.99 W x 9.91 H mm(0.79 L × 0.59 W × 0.39 H in); (2)Low power consumption (200 mW); (3)Semi-sealed and sealed types available; (4)Unique moving magnet armature (Moving Loop System)reduces relay size, magnetic interference, and contact bounce time; (5)Single and double-winding latching types available; (6)High sensitivity in a compact package; (7)Long life assured by high contact pressure.

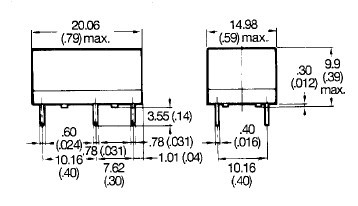

Diagrams
