Product Summary
The LMX2316TMX is a monolithic, integrated frequency synthesizer with prescalers. It is designed to be used to
generate a very stable low noise signal for controlling the local oscillator of an RF transceiver. The LMX2316TMX is fabricated using National’s ABiC V silicon BiCMOS 0.5μ process. When combined with a high quality reference oscillator and loop filter, the LMX2316TMX provides the feedback tuning voltage for a voltage controlled oscillator to generate a low phase noise local oscillator signal. The device is available in a 16-pin TSSOP surface mount plastic package. The applications of the LMX2316TMX are Portable wireless communications (PCS/PCN, cordless), Wireless Local Area Networks (WLANs), Cable TV tuners (CATV), Pagers, Other wireless communication systems.
Parametrics
LMX2316TMX absolute maximum ratings: (1)Power Supply Voltage:VCC1:-0.3V to +6.5V, VCC2:-0.3V to +6.5V, Vp:-0.3V to +6.5V; (2)Voltage on Any Pin with GND = 0V (VI):-0.3V to VCC + 0.3V; (3)Storage Temperature Range (TS):-65℃ to +150℃; (4)Lead Temperature (TL)(solder, 4 sec.):+260℃.
Features
LMX2316TMX features: (1)2.3V to 5.5V operation; (2)Ultra low current consumption; (3)2.5V VCC JEDEC standard compatible; (4)Programmable or logical power down mode:ICC = 1 μA typical at 3V; (5)Dual modulus prescaler:32/33; (6)Selectable charge pump TRI-STATE mode; (7)Selectable FastLock mode with timeout counter; (8)MICROWIRE Interface; (9)Digital Lock Detect.

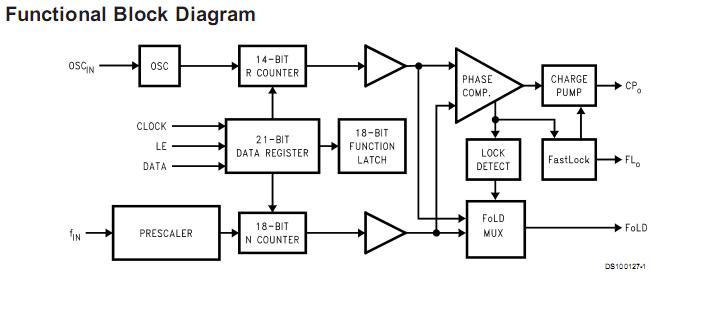

Diagrams

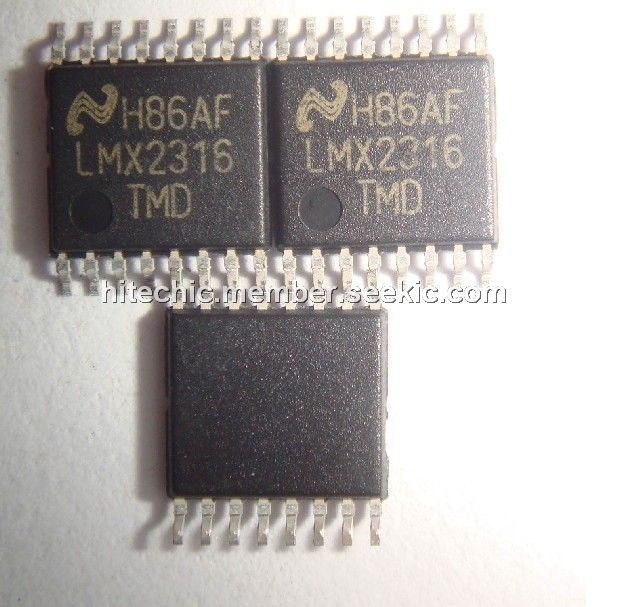

| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 LMX2316TMX |
National Semiconductor |
IC FREQ SYNTH 1.2GHZ 16-TSSOP |
Data Sheet |
Negotiable |
|
||||
 |
LMX2316TMX/NOPB |
|
IC FREQ SYNTH 1.2GHZ 16-TSSOP |
Data Sheet |
Negotiable |
|
||||
