Product Summary

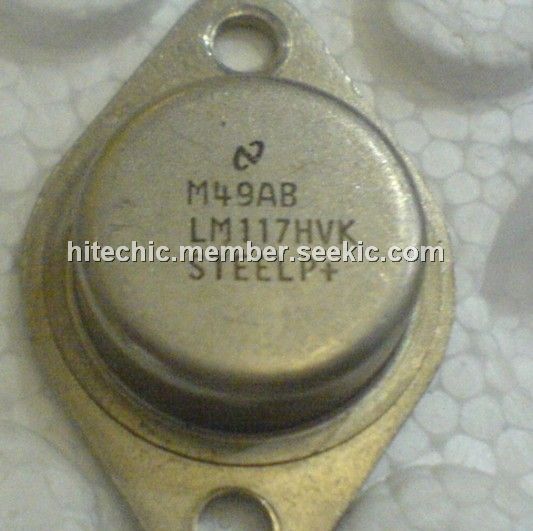

The LM117HVK is adjustable 3-terminal positive voltage regulator capable of supplying in excess of 1.5A over a 1.2V to 57V output range. The LM117HVK is exceptionally easy to use and require only two external resistor to set the output voltage. Further, both line and load regulation are better than standard fixed regulators. Also, the LM117HVK is packaged in standard transistor packages which are easily mounted and handled.
Parametrics
LM117HVK absolute maximum ratings: (1)Power Dissipation: Internally limited; (2)Input—Output Voltage Differential: +60V, -0.3V; (3)Operating Junction Temperature Range: -55 to +150℃; (4)Storage Temperature: -65℃ to +150℃; (5)Lead Temperature (Soldering, 10 sec.): 300℃; (6)ESD Tolerance: 2000V.
Features
LM117HVK features: (1)Adjustable output down to 1.2V; (2)Guaranteed 1.5A output current; (3)Line regulation typically 0.01%/V; (4)Load regulation typically 0.1%; (5)Current limit constant with temperature; (6)100% electrical burn-in; (7)Eliminates the need to stock many voltages; (8)Standard 3-lead transistor package; (9)80 dB ripple rejection; (10)Output is short-circuit protected; (11)P+ Product Enhancement tested.

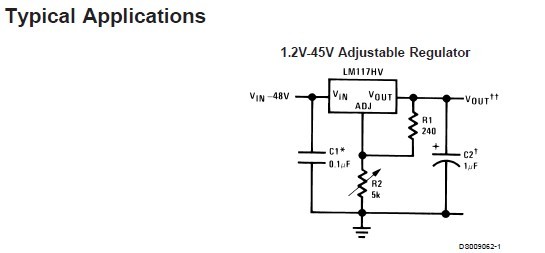

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LM117HVK/883 |
|
IC REG LDO ADJ 1.5A TO-3 |
Data Sheet |
|
|
||||||
