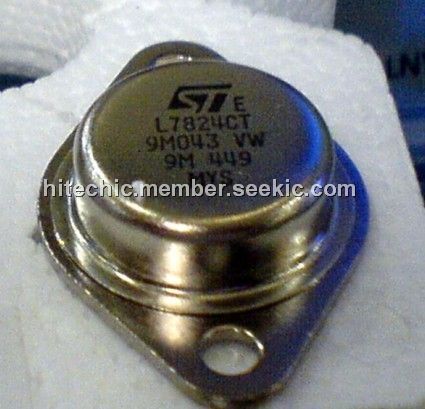

Product Summary
The LM7824CT of three terminal positive regulator is available in the TO-220 package and with several fixed output voltages, making them useful in a wide range of applications. Each type employs internal current limiting, thermal shut down and safe operating area protection, making LM7824CT essentially indestructible. If adequate heat sinking is provided, they can deliver over 1A output current. Although designed primarily as fixed voltage regulators, this LM7824CT can be used with external components to obtain adjustable voltages and currents.
Parametrics
LM7824CT absolute maximum ratings: (1)Power Dissipation: Internally Limited; (2)Input Voltage: 35V; (3)Storage Temperature: -65℃ to +150℃; (4)Operating Junction Temperature: SO-8 0℃ to 125℃; (5)micro SMD: -40℃ to 85℃; (6)Soldering Information; (7)Infrared or Convection (20 sec.): 235℃; (8)Wave Soldering (10 sec.): 260℃ (lead time); (9)ESD Susceptibility: 1kV.
Features
LM7824CT features: (1)Output Current up to 1A; (2)Output Voltages of 5, 6, 8, 9, 12, 15, 18, 24; (3)Thermal Overload Protection; (4)Short Circuit Protection; (5)Output Transistor Safe Operating Area Protection.

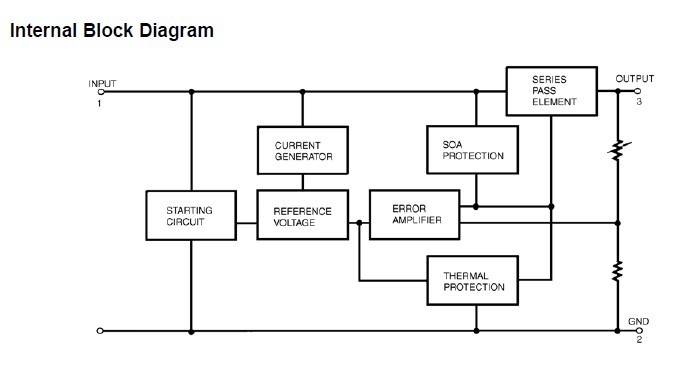

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LM7824CT |
Fairchild Semiconductor |
Linear Regulators - Standard REGULATOR 24V 1A 4% |
Data Sheet |
|
|
||||||||||||
