Product Summary

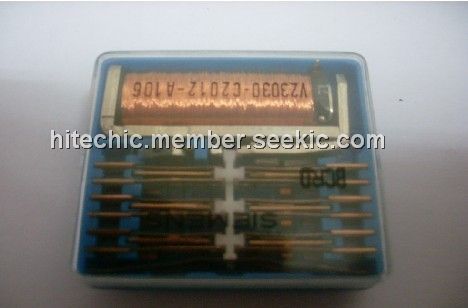

The V23030-C2012-A106 is a Communications/Signal PC Board Relay.

Parametrics

V23030-C2012-A106 Electrical Characteristics: (1)Actuating System = DC ; (2)Input Voltage= 6VDC; (3)Contact - Rated Current = 2A; (4)Coil Resistance = 50Ω; (5)Coil - Rated Power = 720mW; (6)Dielectric Between Coil and Contacts (V rms) = 1000Vrms.

Features

V23030-C2012-A106 features: (1)Termination Type = Through Hole; (2)Series = V23030 / Card Relay SN ; (3)Polarized = No; (4)Mounting Options = PC Board ; (5)Enclosure Type = Dust Protected ; (6)FCC Part 68 Isolation = No ; (7)Contact Base Material = Silver, Gold Overlay ; (8)Approx. Dimensions (L x W x H) (mm [in]) = 39.70 x 37.40 x 10.20[1.564 x 1.473 x .401] ; (9)Option = With Ground Terminal ; (10)Contact Configuration = Bifurcated ; (11)Pin Configuration = Industry Standard ; (12)Contact Arrangement = 6 Form C, 6PDT, 6 C/O ; (13)Coil Magnetic System = Non Polarized, Monostable ; (14)Coil Suppression Diode = Without.
