Product Summary

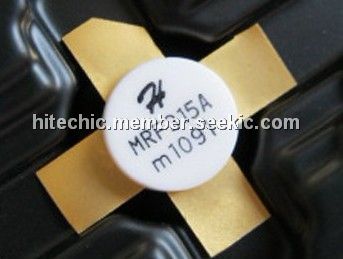

The MRF315A is an NPN Silicon RF power transistor. It is designed for Class C Power Amplifier Applications up to 200 MHz.
Parametrics
MRF315A absolute maximum ratings: (1)IC: 5.0 A; (2)VCB: 65 V; (3)VCE: 35 V; (4)VEBO: 4.0V; (5)PDISS: 75 W; (6)TJ: -65 ℃ to +200 ℃; (7)TSTG: -65 ℃ to +150 ℃; (8)θJC: 2.3 ℃/W.
Features
MRF315A features: (1)PG = 9.0 dB min. at 45 W/ 150 MHz; (2)Withstands 30:1 Load VSWR; (3)Omnigold Metalization System.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MRF315A |
Advanced Semiconductor, Inc. |
Transistors RF Bipolar Power RF Transistor |
Data Sheet |
|
|
||||||||||||
