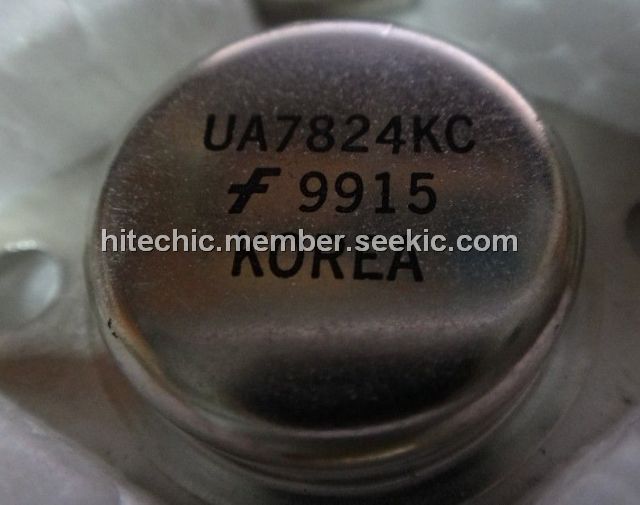

Product Summary
The UA7824KC is a monolithic 3-terminal positive voltage regulator. It is constructed using the fairchild planar epitaxila process. The device employs internal current-limiting, thermal shutdown and safe-area compensation, making it essentially indestructible. The UA7824KC is intended as fixed voltage regulators in a wide range of applications including local regulation for elimination of noise and distribution problems associated with single-point regulation. In addition to use as fixed voltage regulator, the UA7824KC can be used with external components to obtain adjustable output voltages and currents.
Parametrics
UA7824KC absolute maximum ratings: (1)storage temperature range: -65 to 175℃; (2)operating junction temperature range: 0 to 150℃; (3)lead temperature: 300℃; (4)power dissipation: internally limited; (5)input voltage: 35V.
Features
UA7824KC features: (1)output current in excess of 1.0A; (2)no external components; (3)internal thermal overload protection; (4)internal short circuit current-limiting; (5)output transistor safe-area compensation; (6)available in JEDEC TO-220 and TO-3 packages; (7)output voltages of 5V, 6V, 8V, 8.5V, 12V, 15V, 18V and 24V; (8)available in extended temperature range.

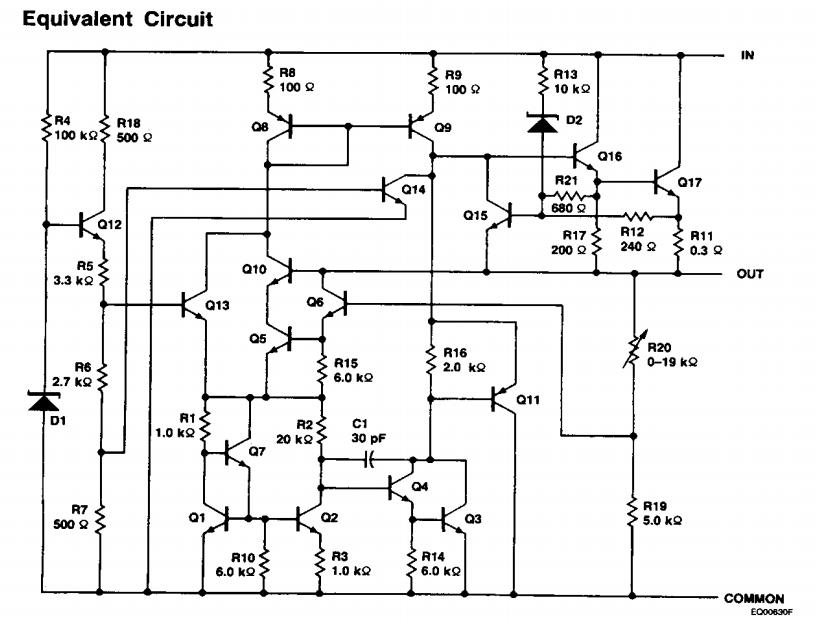

Diagrams
 |
