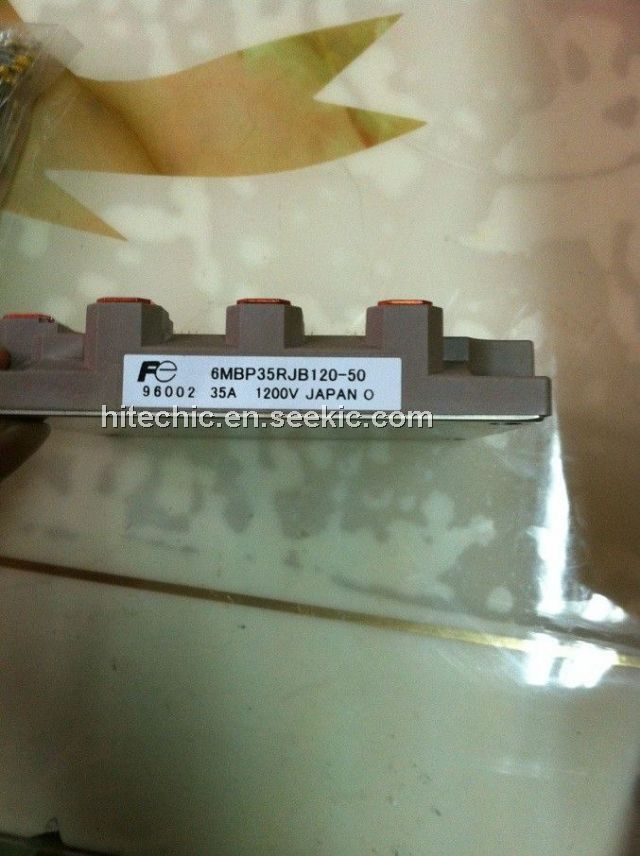

Product Summary

Items Symbol Min. Max. Units
Collector-Emitter Voltage (*1) VCES 0 1200 V
Short Circuit Voltage VSC 200 800 V
Collector Current
DC Ic - 35 A
1ms Ic pulse - 70 A
Duty=100% (*2) -Ic - 35 A
Collector Power Dissipation 1 device (*3) Pc - 174 W
Supply Voltage of Pre-Driver (*4) VCC -0.5 20 V
Input Signal Voltage (*5) Vin -0.5 VCC+0.5 V
Alarm Signal Voltage (*6) VALM -0.5 VCC V
Alarm Signal Current (*7) IALM - 20 mA
Junction Temperature Tj - 150 oC
Operating Case Temperature Topr -20 110 oC
Storage Temperature Tstg -40 125 oC
Solder Temperature (*8) Tsol - 260 oC
Isolating Voltage (*9) Viso - AC2500 Vrms
Screw Torque Mounting (M4) - - 1.7 Nm

Features

Temperature protection provided by directly detecting
the junction temperature of the IGBTs
Low power loss and soft switching
Compatible with existing IPM-N series packages
High performance and high reliability IGBT with overheating
protection
Higher reliability because of a big decrease in number of
parts in built-in control circuit

Diagrams
