Product Summary

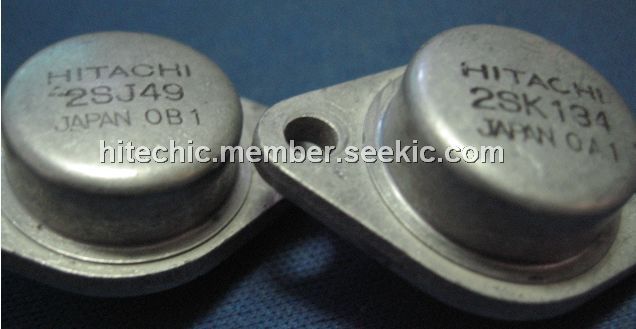

The 2SK134 is a low frequency power amplifier.
Parametrics
2SK134 absolute maximum ratings: (1)Drain source voltage: 120V; (2)Gate source voltage, VGSS: ±14V; (3)Drain current, ID: 7A; (4)Body drain diode, reverse drain current: 7A; (5)Channel dissipation: 100W; (6)Channel temperature: 150℃; (7)Storage temperature: -55 to +150℃.
Features
2SK134 features: (1)High power gain; (2)Excellent frequency response; (3)High speed switching; (4)Wide area of safe operation; (5)Enhancement mode; (6)Equipped with gate protection diodes.

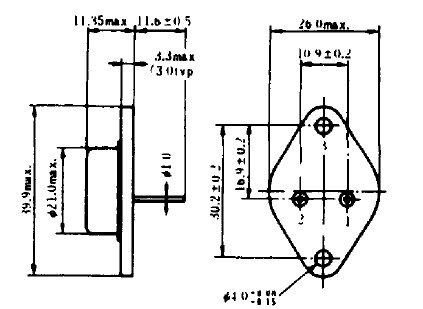

Diagrams
