Product Summary

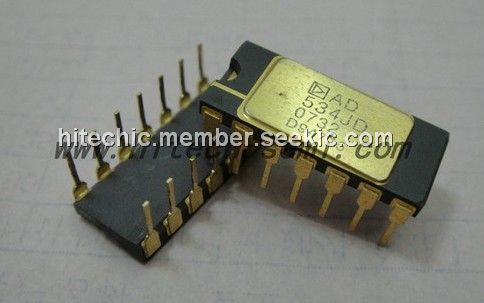

The AD534JD is a monolithic laser trimmed four-quadrant multiplier. It has accuracy specifications previously found only in expensive hybrid or modular products. A maximum multiplication error of ±0.25% is guaranteed for the AD534JD without any external trimming. The AD534JD is the first multiplier to offer fully differential, high impedance operation on all inputs, including the Z-input, a feature which greatly increases its flexibility and ease of use. The applications of the AD534JD are High Quality Analog Signal Processing, Differential Ratio and Percentage Computations, Algebraic and Trigonometric Function Synthesis, Wideband, High-Crest rms-to-dc Conversion, Accurate Voltage Controlled Oscillators and Filters, Available in Chip Form.
Parametrics
AD534JD absolute maximum ratings: (1)Supply Voltage:±18 V; (2)Internal PowerDissipation:500 mW ; (3)Output Short-Circuit to Ground:Indefinite ; (4)Input Voltages, X1 X2 Y1 Y2 Z1 Z2:±VS; (5)Rated Operating Temperature Range:0℃ to +70℃ ; (6)Storage Temperature Range:–65℃ to +150℃; (7)Lead Temperature Range, 60 s Soldering:+300℃.
Features
AD534JD features: (1)Pretrimmed to 60.25% max 4-Quadrant Error; (2)All Inputs (X, Y and Z) Differential, High Impedance for [(X1 –X2) (Y1 – Y2)/10 V] + Z2 Transfer Function; (3)Scale-Factor Adjustable to Provide up to X100 Gain; (4)Low Noise Design: 90 mV rms, 10 Hz to 10 kHz; (5)Low Cost, Monolithic Construction; (6)Excellent Long Term Stability.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 AD534JD |
|
IC TRIMMED MULTIPLIER/DIV 14-DIP |
Data Sheet |
|
|
||||||||||||||
|
AD534JDZ |
|
IC MULTIPLIER PREC TRIM 14-CDIP |
Data Sheet |
|
|
||||||||||||||
