Product Summary

The CY7C68013A-56PVXC is identical to CY7C68014A in form, fit, and functionality. CY7C68014A and CY7C68016A have a lower suspend current than CY7C68013A-56PVXC and CY7C68015A respectively. CY7C68014A and CY7C68016A have a lower suspend current than CY7C68013A-56PVXC and CY7C68015A respectively: hence are ideal for powersensitive battery applications. CY7C68015A and CY7C68016A are available in 56-pin QFN package only. Two additional GPIO signals are available on the CY7C68015A and CY7C68016A to provide more flexibility when neither IFCLK or CLKOUT are needed in the 56-pin package. The USB developers who want to convert their FX2 56-pin application to a bus-powered system will directly benefit from these additional signals. The two GPIOs will give these evelopers the signals they need for the power control circuitry of their bus-powered application without pushing them to a high-pincount version of FX2LP.

Parametrics

CY7C68013A-56PVXC absolute maximum ratings: (1)Storage Temperature: –65℃ to +150℃; (2)Ambient Temperature with Power Supplied: 0℃ to +70℃; (3)Supply Voltage to Ground Potential: –0.5V to +4.0V; (4)DC Input Voltage to Any Input Pin: 5.25V; (5)DC Voltage Applied to Outputs in High Z State: –0.5V to VCC + 0.5V; (6)Power Dissipation: 300 mW; (7)Static Discharge Voltage: > 2000V; (8)Max Output Current, per I/O port: 10 mA; (9)Max Output Current, all five I/O ports (128- and 100-pin packages): 50 mA.

Features

CY7C68013A-56PVXC features: (1)USB 2.0 SB-IF high speed certified (TID 40440111); (2)Single-chip integrated USB 2.0 transceiver, smart SIE, and enhanced 8051 microprocessor; (3)Ultra Low power: ICC no more than 85 mA in any mode; (4)Ideal for bus and battery powered applications; (5)16 KBytes of on-chip Code/Data RAM; (6)Four programmable BULK/INTERRUPT/ISOCHRONOUS; (7)endpoints; (8)Additional programmable (BULK/INTERRUPT) 64-byte endpoint; (9)8- or 16-bit external data interface; (10)Smart Media Standard ECC generation; (11)3.3V operation with 5V tolerant inputs; (12)Vectored USB interrupts and GPIF/FIFO interrupts; (13)Separate data buffers for the Set-up and Data portions; (14)of a CONTROL transfer; (15)Integrated I2C controller, runs at 100 or 400 kHz; (16)Ideal for non-battery powered applications, Suspend current: 300 μA (typ).

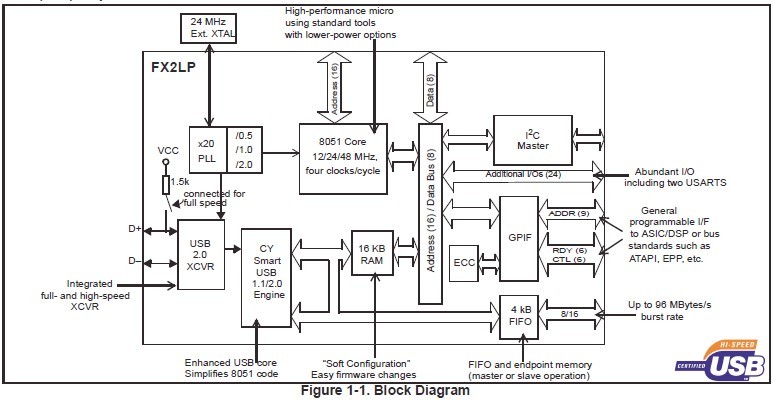

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
CY7C68013A-56PVXC
CY7C68013A-56PVXC

Cypress Semiconductor

8-bit Microcontrollers (MCU) EZ USB FX2LP LO PWR LO COM

Data Sheet

0-1: $6.26
1-25: $5.90
25-50: $5.54
50-100: $5.18
CY7C68013A-56PVXCT
CY7C68013A-56PVXCT

Cypress Semiconductor

8-bit Microcontrollers (MCU) EZ USB FX2LP LO PWR LO COM

Data Sheet

0-691: $6.13
691-1000: $5.71
