Product Summary

The ROS-900PV+ is a Voltage Controlled Oscillator. The applications of the ROS-900PV+ include cellular, instrumentation, fast tuning, PLL circuitry.

Parametrics

ROS-900PV+ absolute maximum ratings: (1)Operating Temperature: -55℃ to 85℃; (2)Storage Temperature: -55℃ to 100℃; (3)Absolute Max. Supply Voltage (Vcc): +6V; (4)Absolute Max. Tuning Voltage (Vtune): +6V.

Features

ROS-900PV+ features: (1)low phase noise, -144 dBc/Hz at 1 MHz, typ; (2)linear tuning, 27-38 MHz/V typ; (3)aqueous washable.

Diagrams

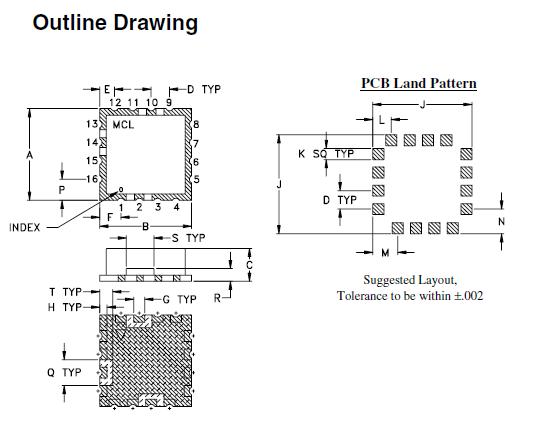

ROS-900PV+ Outline Drawing
