Product Summary

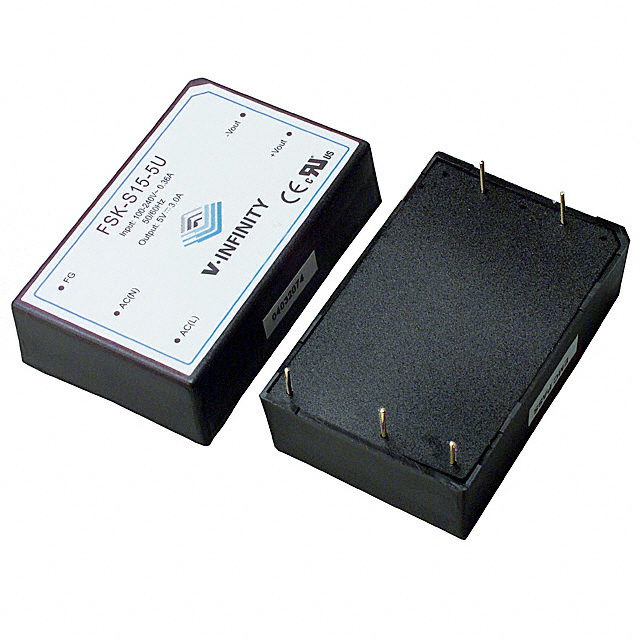

The FSK-S15-5U belongs to FSK-S15 Series AC-DC converter.
Parametrics
FSK-S15-5U electrical specifications: (1)Voltage: AC85~264 (or DC 110 to 340V); (2)Current: 0.31A max. @ 110VAC / 0.16A max. @ 220VAC; (3)Frequency: 47~440Hz max. (50~60Hz typ.); (4)Efficiency: 75% min.; (5)Inrush current (at cold start): 30A max. @ 110VAC / 60A max. @ 220VAC; (6)Leakage current: 0.5mA max. @ 110VAC / 0.75mA max. @ 220VAC; (7)Ripple and noise: ±1% typ.; (8)Line regulation: ±1% typ.; (9)Load regulation: ±1% typ.; (10)Dynamic load regulation: ±3% typ.; (11)Temperature drift: ±1% typ.; (12)Rising time: 400ms max.; (13)Holding time: 10ms min.; (14)Operating temperature range: -10 to 60℃; (15)Storage temperature range: -20 to 70℃; (16)Humidity: 20%~90%RH.
Features
FSK-S15-5U features: (1)UL, C-UL, CB, CE Marking; (2)Encapsulated compact case; (3)High efficiency; (4)Universal input; (5)Surface mounting technology; (6)Built in EMI filter; (7)Inrush current limit; (8)67kHz fixed frequency; (9)Fixed output voltage; (10)Thermal shutdown; (11)Short circuit protection; (12)Low output ripple and noise; (13)Isolated output.

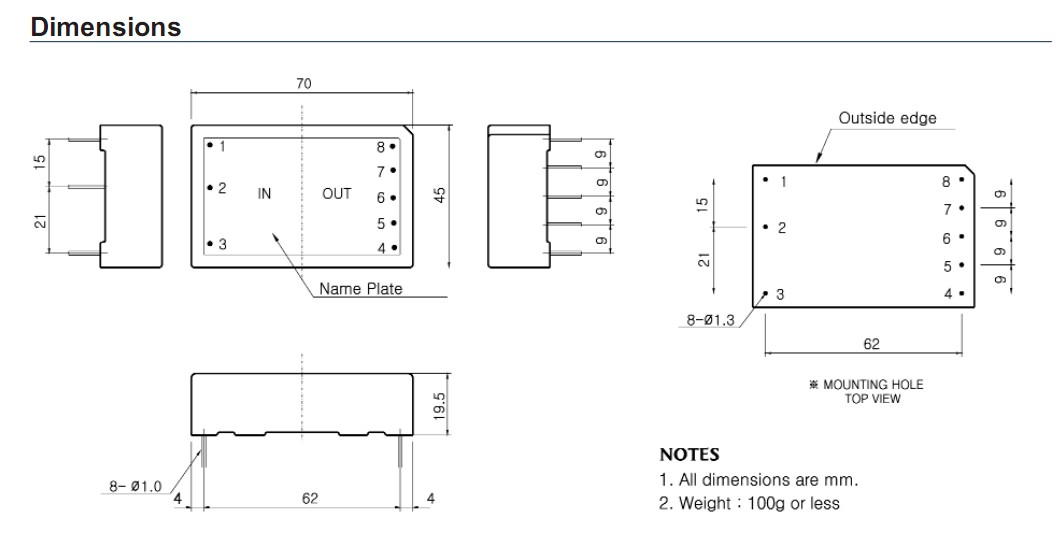

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 FSK-S15-5U |
|
CONVERTER AC-DC 5V 3A 15 WATT |
Data Sheet |
|
|
||||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||||
|
FSK-S15-5U |
|
CONVERTER AC-DC 5V 3A 15 WATT |
Data Sheet |
|
|
||||||||||||||
 |
FSK-S30-12U |
|
CONV AC-DC 12V 2.5A 30W PCB |
Data Sheet |
|
|
||||||||||||||
 |
FSK-S30-15U |
|
CONV AC-DC 15V 2A 30W PCB |
Data Sheet |
|
|
||||||||||||||
 |
FSK-S30-XXX |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||||
|
FSK-S5-XX |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||||
|
FSK-S15-XXX |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||||
