Product Summary

The G6RL-1 is a Low-profile power relay with maximum switching of 10 A. The applications of the G6RL-1 include Boilers, PLCs, I/O ports, timers, and temperature controllers

Parametrics

G6RL-1 absolute maximum ratings: (1)Contact resistance: 100 mΩ max; (2)Operate time: 10 ms max. (SR Models: 15 ms max.); (3)Release time: 5 ms max.; (4)Insulation resistance: 1,000 MΩ min. (at 500 VDC); (5)Dielectric strength: 5,000 VAC, 50/60 Hz for 1 min between coil and contacts, 1,000 VAC, 50/60 Hz for 1 min between contacts of same polarity; (6)Impulse withstand voltage: 10 kV between coil and contacts (1.2 × 50 μs); (7)Vibration resistance: Destruction: 10 to 55 to 10 Hz, 1.5-mm double amplitude, Malfunction: 10 to 55 to 10 Hz, 0.825-mm single amplitude (1.65-mm double amplitude) when energized.; (8)10 to 55 to 10 Hz, 0.4-mm single amplitude (0.8-mm double amplitude) when not energized; (9)Shock resistance: Destruction: 1,000 m/s2.

Features

G6RL-1 features: (1)Low profile: 12.3 mm in height; (2)Max. switching capacity: 2,500 VA (NO); (3)IEC 60947-5-1, AC-15, DC13; (4)Clearance and creepage distance: 10 mm; (5)Models with high shock resistance (250 m/s2) are available.; (6)Models for P1 load (2×200 W lamps parallel to ignition transformer) are available.; (7)RoHS Compliant.

Diagrams

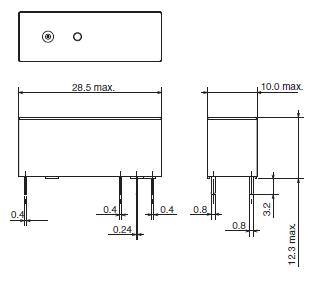

G6RL-1 diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
G6RL-1 DC12
G6RL-1 DC12


RELAY GEN PURPOSE SPDT 8A 12V

Data Sheet

0-1: $2.12
1-25: $1.91
25-50: $1.69
50-100: $1.53
100-250: $1.44
250-500: $1.27
500-1000: $1.14
G6RL-1 DC24
G6RL-1 DC24

Omron Electronics

General Purpose / Industrial Relays 10A Switching SPDT Low Profile 24VDC

Data Sheet

0-1: $2.12
1-25: $1.90
25-50: $1.69
50-100: $1.52
G6RL-1 DC3
G6RL-1 DC3


RELAY GENERAL PURPOSE SPDT 8A 3V

Data Sheet

0-1: $2.12
1-25: $1.91
25-50: $1.69
50-100: $1.53
100-250: $1.44
250-500: $1.27
500-1000: $1.14
G6RL-1 DC48
G6RL-1 DC48


RELAY GEN PURPOSE SPDT 8A 48V

Data Sheet

0-100: $2.22
G6RL-1 DC5
G6RL-1 DC5

Omron Electronics

General Purpose / Industrial Relays 10A Switching SPDT Low Profile 5VDC

Data Sheet

0-1: $2.12
1-25: $1.90
25-50: $1.69
50-100: $1.52
G6RL-1 DC6
G6RL-1 DC6

Omron Electronics

General Purpose / Industrial Relays 10A Switching SPDT Low Profile 6VDC

Data Sheet

0-1: $2.15
1-25: $1.94
25-50: $1.84
50-100: $1.64
G6RL-1 DC9
G6RL-1 DC9

Omron Electronics

General Purpose / Industrial Relays Power PCB Relay

Data Sheet

0-1: $2.05
1-25: $1.94
25-50: $1.78
50-100: $1.62
G6RL-14-ASI DC12
G6RL-14-ASI DC12

Omron Electronics

General Purpose / Industrial Relays SPDT 12VDC Sealed AgSnIn Contact

Data Sheet

0-1: $2.24
1-25: $2.02
25-50: $1.79
50-100: $1.63
