Product Summary
The GP2S28 is a Long Focal Distance, Case Type Photointerrupter. The applications of the GP2S28 include CD players, Facsimiles, Printers.
Parametrics
GP2S28 absolute maximum ratings: (1)Forward current: 60 mA; (2)Peak forward current: 1 A; (3)Reverse voltage: 6 V; (4)Power dissipation: 150 mW; (5)Collector-emitter voltage: 35 V; (6)Emitter-collector voltage: 6 V; (7)Collector current: 20 mA; (8)Collector power dissipation: 50 mW; (9)Operating temperature: - 25 to + 85 ℃; (10)Storage temperature: - 40 to + 85 ℃; (11)Soldering temperature: 260 ℃.
Features
GP2S28 features: (1)Long focal distance type ( Detecting range: 6mm ); (2)With pins for protection of wrong insertion; (3)Snap-in mounting type.

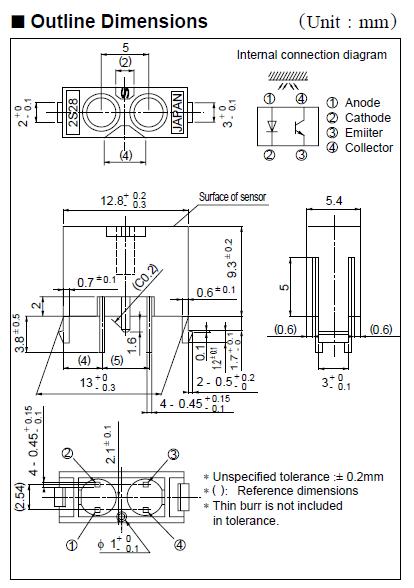

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 GP2S28 |
Sharp Microelectronics |
Optical Switches, Reflective, with Phototransistor Output Photointerrupter 3-7mm Focal Length |
Data Sheet |
Negotiable |
|
||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||
 |

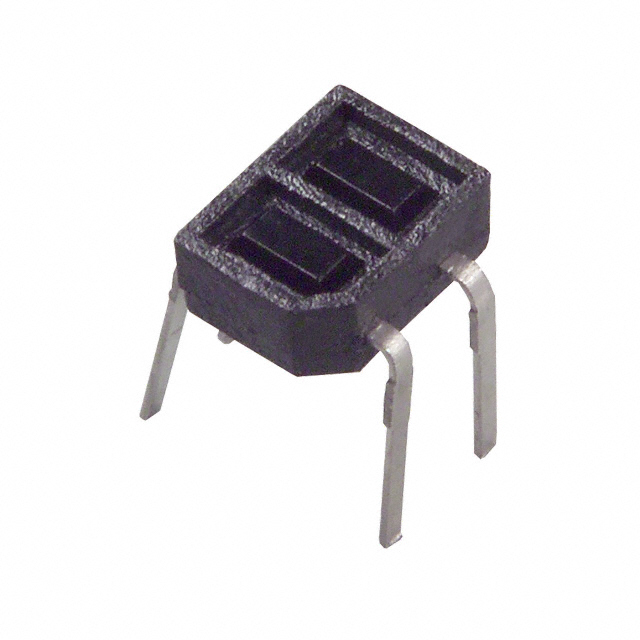

GP2S24 |
|
PHOTOINTERRUPTER REFLEC .8MM DIP |
Data Sheet |
Negotiable |
|
||||
|
GP2S24ABJ00F |
Sharp Microelectronics |
Optical Switches, Reflective, with Phototransistor Output Photointerrupter FD 0.6mm |
Data Sheet |
Negotiable |
|
||||
|
GP2S24BCJ00F |
Sharp Microelectronics |
Optical Switches, Reflective, with Phototransistor Output Photointerrupter FD 0.6mm |
Data Sheet |
Negotiable |
|
||||
|
GP2S24BJ000F |
Sharp Microelectronics |
Optical Switches, Reflective, with Phototransistor Output Photointerrupter Reflective 0.7mm |
Data Sheet |
Negotiable |
|
||||
|
GP2S24CJ000F |
Sharp Microelectronics |
Optical Switches, Reflective, with Phototransistor Output Photointerrupter FD 0.6mm |
Data Sheet |
Negotiable |
|
||||
|
GP2S24J0000F |
Sharp Microelectronics |
Optical Switches, Reflective, with Phototransistor Output Photointerrupter FD 0.6mm |
Data Sheet |
Negotiable |
|
||||
