Product Summary

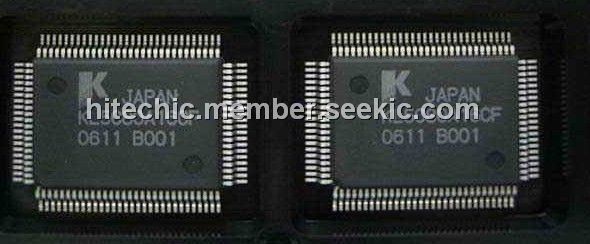

The KL5C80A16CFP2 is a Z80 compatible high speed microcontroller.

Features

KL5C80A16CFP2 features: (1)CPU core:KC80(external 8-bit data bus internal 16-bit data path); (2)instruction set:fully compatible with Z80 MPU at binary level; (3)high speed operation:10MHz,4times faster than Z80 at the same clock rate; (4)operational clock frequency:0MHz to 10MHz; (5)minimum execution time:100ns(1 clock); (6)address space:512-kbyte; (7)timer/counter:event, interrupt and interval count, PWM, WDT modes; (8)interrupt controller:NMI and internal/external 16 levels of maskable interrupts,nested interrupt operation; (9)parallel port:1- or 4-bit wise configurable input or output direction bit set/reset function; (10)serial channel: full-duplex USART max baud rate 2Mbps; (11)on chip memory:512-byte high speed RAM(no wait accessible); (12)external bus interface:external bus interface unit with a wait state controller; (13)other functions: clock generator and debug logic; (14)100-pin QFP package; (15)software debug tool; (16)best suited for local controller for various types of embedded system; (17)KC80 ASIC microcontroller are also available.

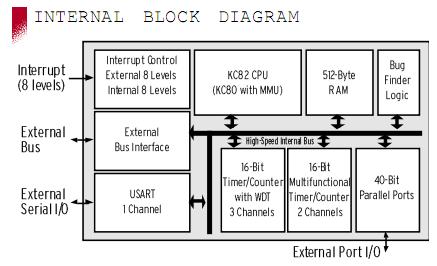

Diagrams
