Product Summary

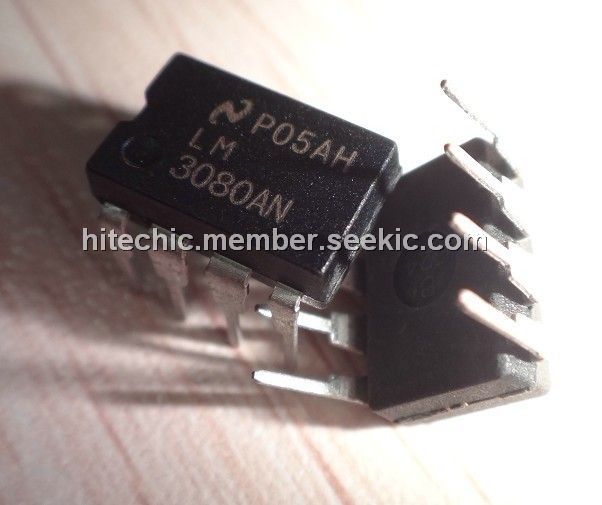

The LM3080AN is an Operational Transconductance Amplifier intended to fulfill a wide variety of variable gain applications. The LM3080AN has differential inputs and high impedance push-pull outputs. The LM3080AN has high input impedance and its transconductance (gm) is directly proportional to the amplifier bias current (IABC). High slew rate together with programmable gain make the LM3080AN an ideal choice for variable gain applications such as sample and hold, multiplexing, filtering, and multiplying.
Parametrics
LM3080AN absolute maximum ratings: (1)Supply Voltage: ±22V; (2)Power Dissipation: 250 mW; (3)Differential Input Voltage: ±5V; (4)Amplifier Bias Current (IABC): 2mA; (5)DC Input Voltage: +VS to -VS; (6)Output Short Circuit Duration: Indefinite; (7)Operating Temperature Range: 0 to 70℃; (8)Storage Temperature Range: -65 to 150℃; (9)Lead Temperature (Soldering, 10 sec.): 260℃.
Features
LM3080AN features: (1)Slew rate (unity gain compensated): 50 V/ms; (2)Fully adjustable gain: 0 to gm·RL limit; (3)Extended gm linearity: 3 decades; (4)Flexible supply voltage range: ±2V to ±18V; (5)Adjustable power consumption.

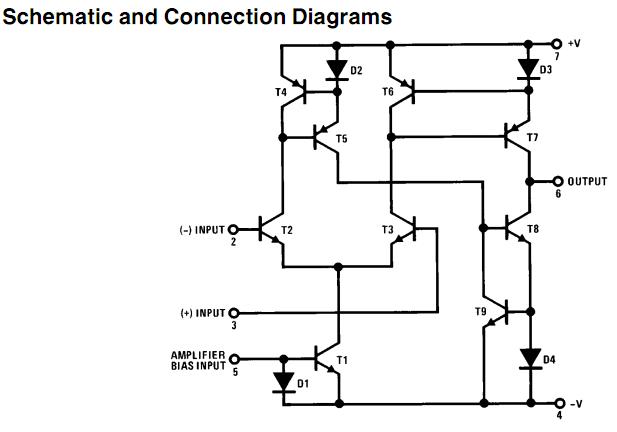

Diagrams
