Product Summary

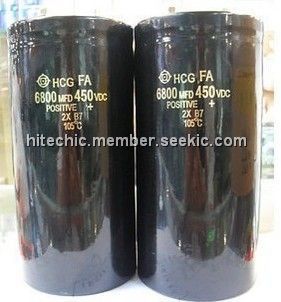

The HCGF6A2W682Y is a Capacitor.

Parametrics

HCGF6A2W682Y absolute maximum ratings: (1)Temperature range: –25℃ ~ +85℃; (2)Capacitance tolerance: ±20% (20℃,120Hz); (3)Rated voltage: 400 ~ 500V.DC; (4)Leakage current: 0.01CV (μA) or 5mA, whichever is smaller or less [C = nominal capacitance (μF), V = rated voltage (V)]; (5)Permissible ripple current: Less than the value specified in the standard products table. (20℃,120Hz).

Features

HCGF6A2W682Y features: (1)The size is reduced by about 14% of the HCGF5 type and the rating 500 V DC is added in the series. A super large case product of Φ100 is also added.
