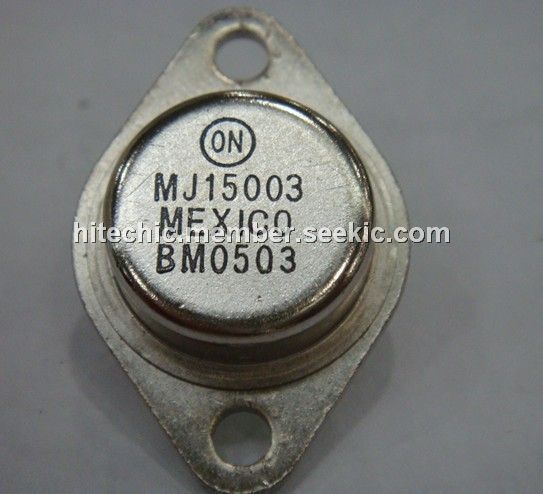

Product Summary
The MJ15003 is a PowerBase power transistor. It is designed for high power audio, disk head positioners and other linear applications.
Parametrics
MJ15003 absolute maximum ratings: (1)Collector-Emitter Voltage:140 Vdc; (2)Collector-Base Voltage:140 Vdc; (3)Emitter-Base Voltage:5 Vdc; (4)Collector Current - Continuous:20 Adc; (5)Base Current - Continuous:5 Adc; (6)Emitter Current - Continuous:25 Adc; (7)Total Power Dissipation @ TC = 25℃:250W; (8)Derate above 25℃:1.43W/℃; (9)Operating and Storage Junction Temperature Range:–65℃ to +200℃.
Features
MJ15003 features: (1)High Safe Operating Area (100% Tested) - 5.0 A @ 50 V; (2)For Low Distortion Complementary Designs; (3)High DC Current Gain - hFE = 25 (Min) @ IC = 5 Adc; (4)Pb-Free Packages are Available.

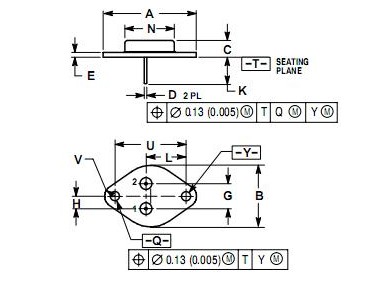

Diagrams
