Product Summary

The MPSA42 is a NPN high-voltage transistor in a TO-92 plastic package.

Parametrics

MPSA42 absolute maximum ratings: (1)VCBO collector-base voltage open emitter MPSA42: 300V; (2)VCEO collector-emitter voltage open base MPSA42: 300V; (3)VEBO emitter-base voltage open collector: 6V; (4)IC collector current (DC): 100mA; (5)ICM peak collector current: 200mA; (6)IBM peak base current: 100mA; (7)Ptot total power dissipation Tamb ≤ 25 ℃: 500mW; (8)Tstg storage temperature: -65 to +150℃; (9)Tj junction temperature: 150℃; (10)Tamb ambient temperature: -65 to +150℃.

Features

MPSA42 features: (1)Low current (max. 100 mA); (2)High voltage (max. 300 V).

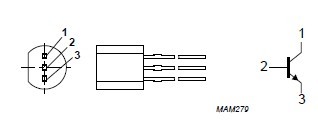

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
MPSA42
MPSA42
Fairchild Semiconductor
Transistors Bipolar (BJT) NPN Transistor High Voltage
Data Sheet
0-1: $0.17
1-25: $0.14
25-100: $0.07
100-250: $0.06
MPSA42 AMO
MPSA42 AMO
NXP Semiconductors
Transistors Bipolar (BJT) TRANS HV AMMO RADIAL
Data Sheet
Negotiable
MPSA42_D74Z
MPSA42_D74Z
Fairchild Semiconductor
Transistors Bipolar (BJT) NPN Transistor High Voltage
Data Sheet
0-1: $0.06
1-25: $0.05
25-100: $0.05
100-250: $0.04
MPSA42_D81Z
MPSA42_D81Z
Fairchild Semiconductor
Transistors Bipolar (BJT) NPN Transistor High Voltage
Data Sheet
0-1: $0.19
1-25: $0.18
25-100: $0.14
100-250: $0.12
MPSA42_J18Z
MPSA42_J18Z
Fairchild Semiconductor
Transistors Bipolar (BJT) NPN High Voltage Transistor
Data Sheet
0-1: $0.19
1-25: $0.18
25-100: $0.14
100-250: $0.12
MPSA42_J18Z_Q
MPSA42_J18Z_Q
Fairchild Semiconductor
Transistors Bipolar (BJT) NPN High Voltage Transistor
Data Sheet
Negotiable
MPSA42_J22Z
MPSA42_J22Z
Fairchild Semiconductor
Transistors Bipolar (BJT) NPN Transistor High Voltage
Data Sheet
Negotiable
MPSA42_Q
MPSA42_Q
Fairchild Semiconductor
Transistors Bipolar (BJT) NPN Transistor High Voltage
Data Sheet
Negotiable
