Product Summary

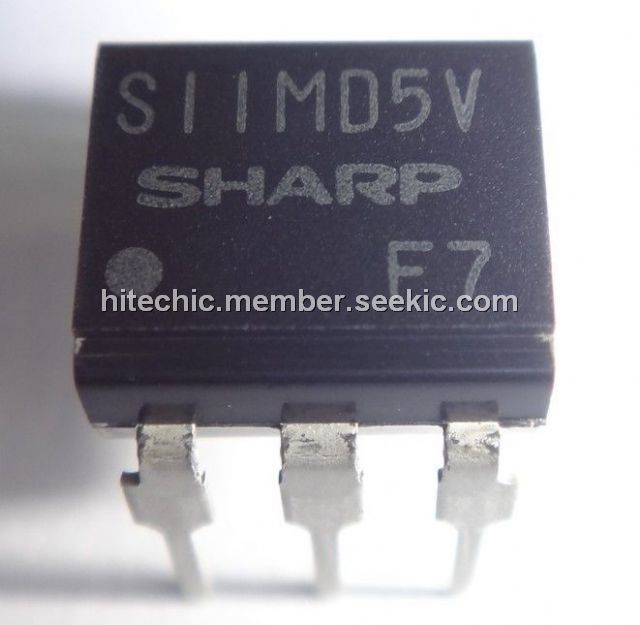

The S11MD5V is a Mini-flat Type Phototriac Coupler. It is designed for triggering medium/high power triac.

Parametrics

S11MD5V absolute maximum ratings: (1)Forward current IF: 50 mA; (2)Reverse voltage VR: 6 V; (3)RMS ON-state current IT: 100 mArms; (4)Peak one cycle surge current Isurge: 1.2 A; (5)Repetitive peak OFF-state voltage VDRM: 400 V; (6)Isolation voltage Viso: 5000 Vrms; (7)Operating temperature Topr: -30 to +100 ℃; (8)Storage temperature Tstg: -55 to +125 ℃; (9)Soldering temperature Tsol: 260 ℃.

Features

S11MD5V features: (1)Isolation voltage between input and output Viso: 5000Vrms; (2)High critical rate of rise of OFF-state voltage(dV/dt: MIN. 100V/μs); (3)Recognized by UL, file No. E64380.

Diagrams

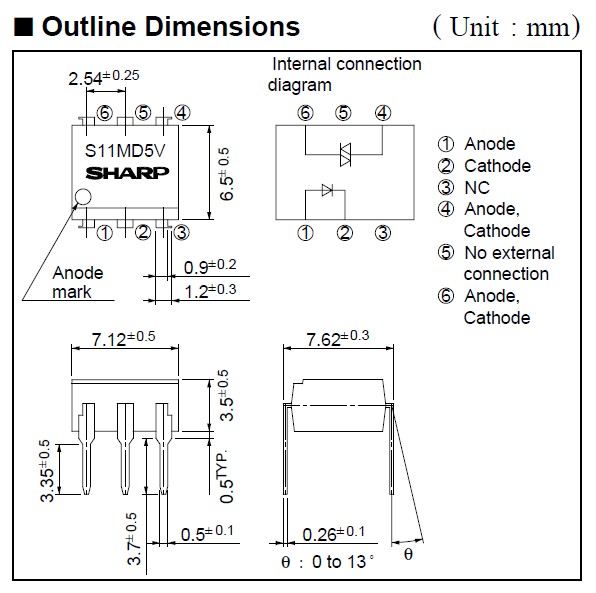

S11MD5V dimensions
