LM4881N

200mW, Amplifier, SOP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.56~0.90 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.56~0.90

PartNumber:: LM4881N

Brand:: National Semiconductor - NS | Pack: DIP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Lisa's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-07-27

From Other Seller

Part Number:LM4881N
US $0.56 - 0.90
EKXG401ELL6R8MJ16S

US $5.00 - 5.00 / Piece
(0) Remove
TMS320C6414TBGLZA7

US $58.00 - 65.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

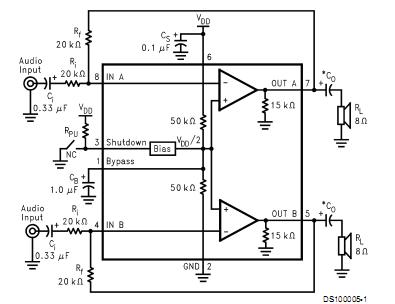

The LM4881N is a dual audio power amplifier capable of delivering 200 mW of continuous average power into an 8Ω load with 0.1% (THD) from a 5V power supply. It is designed specifically to provide high quality output power with a minimal amount of external components using surface mount packaging. Since the LM4881N does not require bootstrap capacitors or snubber networks, it is optimally suited for low-power portable systems. The LM4881N features an externally controlled, low power consumption shutdown mode which is virtually clickless and popless, as well as an internal thermal shutdown protection mechanism. The applications of the LM4881N are Headphone Amplifier, Personal Computers, Microphone Preamplifier.

Parametrics

LM4881N absolute maximum ratings: (1)Supply Voltage:6.0V; (2)Storage Temperature:-65℃ to +150℃; (3)Input Voltage:-0.3V to VDD + 0.3V; (4)Power Dissipation:Internally limited; (5)ESD Susceptibility:3500V; (6)ESD Susceptibility:250V; (7)Junction Temperature:150℃; (8)Soldering Information:Small Outline Package: Vapor Phase (60 seconds):215℃, Infrared (15 seconds):220℃.

Features

LM4881N features: (1)MSOP surface mount packaging; (2)Unity-gain stable; (3)External gain configuration capability; (4)Thermal shutdown protection circuitry; (5)No bootstrap capacitors, or snubber circuits are necessary.
