Product Summary
The SAB-C517A-LN is an 8-bit CMOS microcontroller. It is up to 24MHz external operating frequency. The SAB-C517A-LN has extensive facilities for binary and BCD arithmetic and excels in its bit-handling capabilities. Efficient use of program memory results from an instruction set consisting of 44 % one-byte, 41 % two-byte, and 15% threebyte instructions. With a 12 MHz crystal, 58% of the instructions are executed in 1ms (24 MHz : 500ns).
Parametrics
SAB-C517A-LN absolute maximum ratings: (1)Storage temperature, TST: – 65 to 150 ℃; (2)Voltage on VDD pins with respect to ground (VSS), VDD: –0.5 to 6.5 V; (3)Voltage on any pin with respect to ground (VSS), VIN: –0.5 to VDD+0.5V; (4)Input current on any pin during overload condition: –10 to 10 mA; (5)Absolute sum of all input currents during overload condition: |100| mA max; (6)Power dissipation, PDISS: TBD W max.
Features
SAB-C517A-LN features: (1)Two full duplex serial interfaces (USART); (2)our 16-bit timer/counters; (3)Powerful 16-bit compare/capture unt (CCU) with up to 21 high-speed or PWM output channels and 5 capture inputs; (4)10-bit A/D converter; (5)Extended watchdog facilities; (6)Power saving modes; (7)17 interrupt sources (7 external, 10 internal) selectable at 4 priority levels.

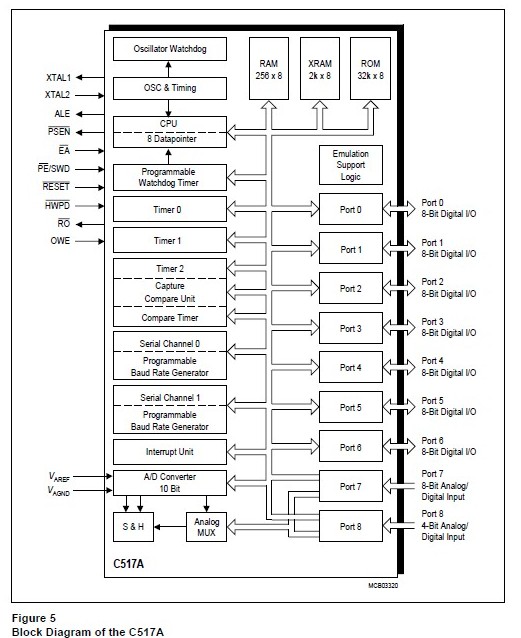

Diagrams
 |
