Product Summary
The 2SJ162 is a silicon P-channel MOSFET for low frequency power amplifier.
Parametrics
2SJ162 absolute maximum ratings: (1)Drain to source voltage: -160 V; (2)Gate to source voltage VGSS: ±15 V; (3)Drain current ID: -7A; (4)Body to drain diode reverse drain current IDR: -7A; (5)Channel dissipation Pch: 100 W; (6)Channel temperature Tch: 150 ℃; (7)Storage temperature Tstg: –55 to +150℃.
Features
2SJ162 features: (1)Good frequency characteristic; (2)High speed switching; (3)Wide area of safe operation; (4)Enhancement-mode; (5)Good complementary characteristics; (6)Equipped with gate protection diodes; (7)Suitable for audio power amplifier.

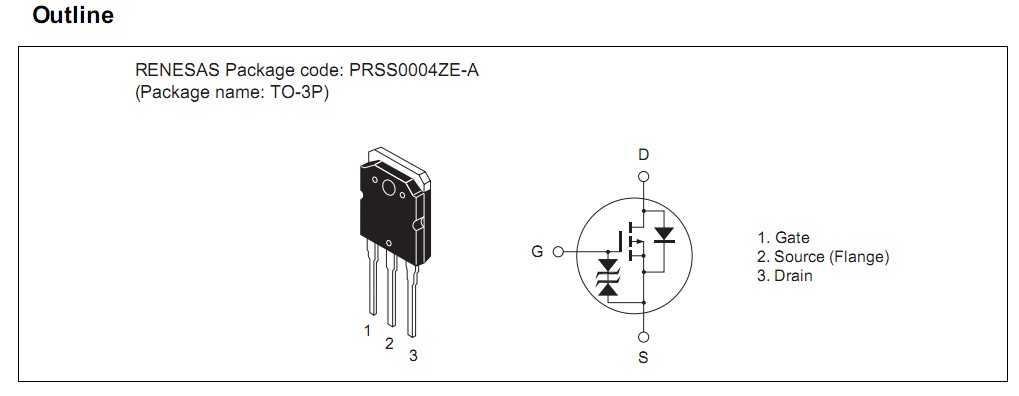

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||
---|---|---|---|---|---|---|---|---|---|---|
2SJ162-E |
MOSFET P-CH 160V 7A TO-3P |
Data Sheet |
Negotiable |
|
||||||
2SJ162 |
MOSFET P-CH 160V 7A TO-3P |
Data Sheet |
Negotiable |
|
