Product Summary

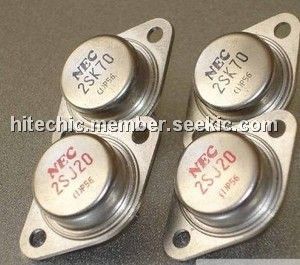

The 2SK70 is an N-channel MOS Field Effect Power transistor designed for solenoid, motor and lamp driver.
Parametrics
2SK70 absolute maximum ratings: (1)Storage temperature: -55 to +150 ℃; (2)Junction temperature: 150 ℃ maximum; (3)Total power dissipation: 1.3W; (4)Total power dissipation (Tc=25℃): 15W; (5)Vdss drain to source voltage: 80V; (6)Gate to source voltage: ±20V; (7)Drain current(DC): ±2A; (8)Drain current9pulse): ±6A.
Features
2SK70 features: (1)4 V Gate drive-logic level; (2)Low RDS (on); (3)No second breakdown.
Diagrams
