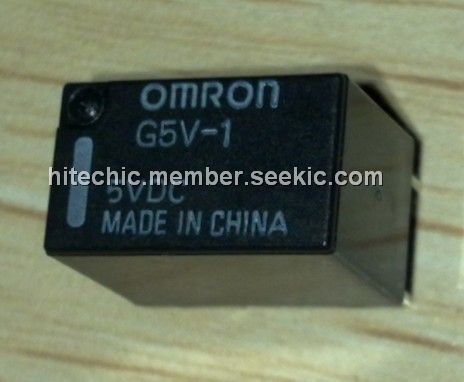

Product Summary

The G5V-1 is an Ultra-miniature, Highly Sensitive SPDT Relay for Signal Circuits.

Parametrics

G5V-1 absolute maximum ratings: (1)Contact resistance: 100 mΩ max; (2)Operate time: 10 ms max. (SR Models: 15 ms max.); (3)Release time: 5 ms max.; (4)Insulation resistance: 1,000 MΩ min. (at 500 VDC); (5)Dielectric strength: 5,000 VAC, 50/60 Hz for 1 min between coil and contacts, 1,000 VAC, 50/60 Hz for 1 min between contacts of same polarity; (6)Impulse withstand voltage: 10 kV between coil and contacts (1.2 × 50 μs); (7)Vibration resistance: Destruction: 10 to 55 to 10 Hz, 1.5-mm double amplitude, Malfunction: 10 to 55 to 10 Hz, 0.825-mm single amplitude (1.65-mm double amplitude) when energized.; (8)10 to 55 to 10 Hz, 0.4-mm single amplitude (0.8-mm double amplitude) when not energized; (9)Shock resistance: Destruction: 1,000 m/s2.

Features

G5V-1 features: (1)High sensitivity: 150 mW nominal power consumption; (2)Small size at 10 H x 7.5 W x 12.5 L mm; (3)Switches from 1 mA to 1 A; (4)Conforms to FCC part 68 requirements for coil to contacts; (5)Fully-sealed construction; (6)Ideal for use in telecommunications, security, and computer/; (7)peripheral equipment.; (8)RoHS Compliant.

Diagrams

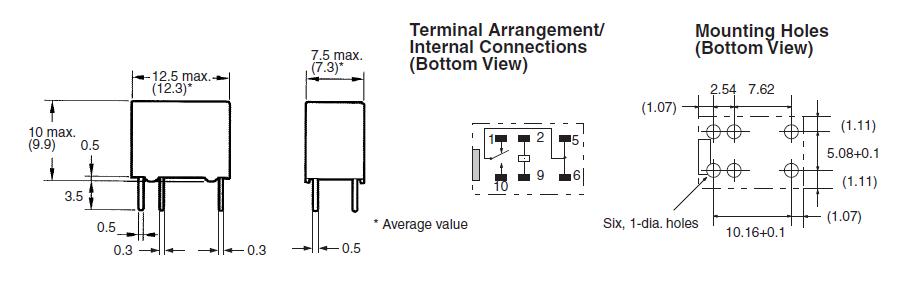

G5V-1 diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
G5V-1-2 DC12
G5V-1-2 DC12

Omron Electronics

High Frequency / RF Relays ThruHole 1A SPDT 12DC 150mW Seal

Data Sheet

0-1: $1.61
1-25: $1.45
25-50: $1.28
50-100: $1.16
G5V-1-2 DC24
G5V-1-2 DC24

Omron Electronics

High Frequency / RF Relays ThruHole 1A SPDT 24DC 150mW Seal

Data Sheet

0-1: $1.25
1-25: $1.16
25-50: $1.04
50-100: $0.94
G5V-1-2 DC5
G5V-1-2 DC5

Omron Electronics

High Frequency / RF Relays ThruHole 1A SPDT 5DC 150mW Seal

Data Sheet

0-1: $1.61
1-25: $1.45
25-50: $1.28
50-100: $1.16
G5V-1-2 DC6
G5V-1-2 DC6

Omron Electronics

High Frequency / RF Relays ThruHole 1A SPDT 6DC 150mW Seal

Data Sheet

0-1: $0.98
1-25: $0.91
25-50: $0.85
50-100: $0.78
G5V-1-2 DC9
G5V-1-2 DC9

Omron Electronics

High Frequency / RF Relays ThruHole 1A SPDT 9DC 150mW Seal

Data Sheet

0-1: $1.07
1-25: $0.99
25-50: $0.92
50-100: $0.85
G5V-1-2-DC3
G5V-1-2-DC3


RELAY GENERAL PURPOSE SPDT 1A 3V

Data Sheet

Negotiable
G5V-13 DC12
G5V-13 DC12


RELAY GEN PURPOSE SPDT 1A 12V

Data Sheet

0-500: $0.88
G5V-13 DC24
G5V-13 DC24


RELAY GEN PURPOSE SPDT 1A 24V

Data Sheet

0-500: $0.88
