Product Summary

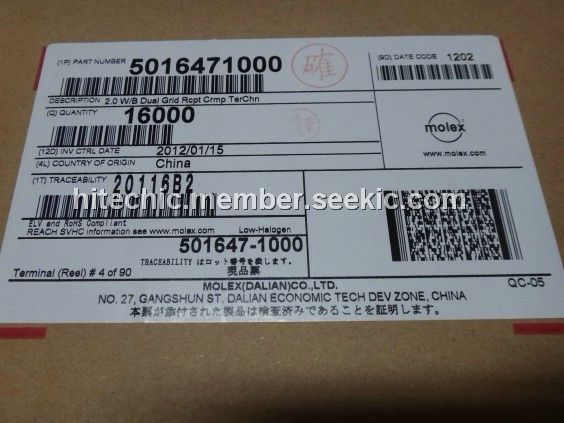

The 5016471000 is a connector.

Parametrics

5016471000 absolute maximum ratings: (1)Current - Maximum per Contact 2A; (2)Voltage - Maximum 250V AC (RMS)/DC.

Features

5016471000 features: (1)Durability (mating cycles max) 30; (2)Gender Receptacle; (3)Material - Metal Copper Alloy; (4)Material - Plating Mating Tin; (5)Packaging Type Reel; (6)Termination Interface: Style Crimp or Compression; (7)Wire Insulation Diameter 0.95-1.50 (.037-.059"); (8)Wire Size AWG 22, 24, 26; (9)Wire Size mm2 0.124-0.34.

Diagrams

5016471000 dimensions
