Product Summary

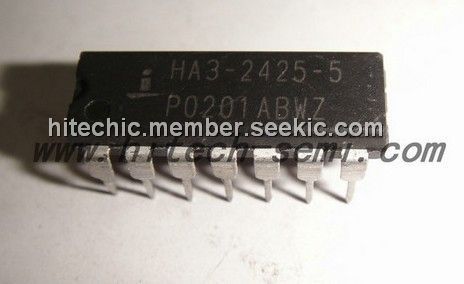

The HA3-2425-5 is a 3.2 us Sample and Hold Amplifier. It consists of a high performance operational amplifier with its output in series with an ultra-low leakage analog switch and JFET input unity gain amplifier. The HA3-2425-5 may also be used as a versatile operational amplifier with a gated output for applications such as analog switches, peak holding circuits, etc. The applications of the HA3-2425-5 are 12-Bit Data Acquisition, Digital to Analog Deglitcher, Auto Zero Systems, Peak Detector, Gated Operational Amplifier. With an external hold capacitor connected to the switch output, a versatile, high performance sample-and-hold or track-and-hold circuit is formed.
Parametrics
HA3-2425-5 absolute maximum ratings: (1)Voltage Between V+ and V- Terminals:40V; (2)Differential Input Voltage:24V; (3)Digital Input Voltage (Sample and Hold Pin):+8V, -15V; (4)Output Current:Short Circuit Protected.
Features
HA3-2425-5 features: (1)Maximum Acquisition Time: 10V Step to 0.1%:4μs (Max),10V Step to 0.01%:6μs (Max); (2)Low Droop Rate (CH = 1000pF):5μV/ms (Typ); (3)Gain Bandwidth Product:2.5MHz (Typ); (4)Low Effective Aperture Delay Time:30ns (Typ); (5)TTL Compatible Control Input; (6)±12V to ±15V Operation.

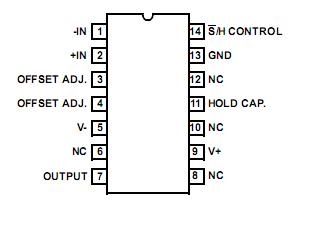

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 HA3-2425-5 |
|
IC AMP SAMPLE&HOLD 3.2US 14-DIP |
Data Sheet |
Negotiable |
|
||||||
