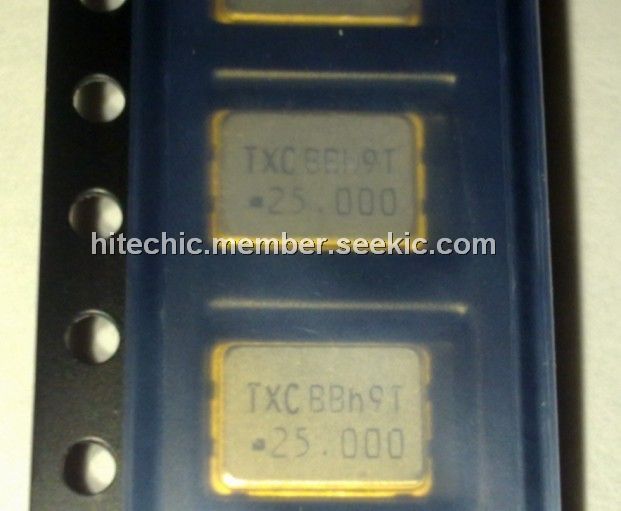

The 7W-25.000MBA-T is a kind of oscillator.

Parametrics

7W-25.000MBA-T absolute maximum ratings: (1)Output Type: CMOS; (2)Output Load: 15 pF/ 15 pF , 30 pF/15 pF , 50 pF; (3)Oscillation Mode: Fundamental / 3rd Overtone; (4)Supply Voltage:1.8 V/ 2.5 V , 2.8 V , 3.3 V/ 5 V; (5)Frequency Range: 1 ~ 170 MHz; (6)Frequency Stability: ± 25 ppm , ± 50 ppm; (7)Operating Temperature Range: - 10 ~ + 70 ℃/ - 40 ~ + 85 ℃; (8)Storage Temperature Range: - 55 ~ + 125℃; (9)Voltage Vol ( Max. ) / Voh ( Min. ): 0.1 VDD / 0.9 VDD; (10)Rise ( Tr ) / Fall ( Tf ) Time: 10 ns ( 1 ~ 10 MHz ) , 7 ns ( 20 ~ 50 MHz ) , 5 ns ( > 50 MHz ) Max.; (11)Supply Current: 20 mA Max.; (12)Symmetry: 40 ~ 60 %; (13)Start-up Time: 10 ms Max.; (14)Phase Jitter ( 12 KHz ~ 20 MHz): 1 ps Max.

Features

7W-25.000MBA-T features: (1)Small SMD seam sealed clock crystal oscillator units; (2)High precision characteristic covering up to wide frequency range; (3)Designed for automatic mounting and reflow soldering; (4)Optionable stand-by function for output: Tri-state output; (5)Supply voltage range : 1.8 V ~ 5 V; (6)High stability, low jitter, low power consumption; (7)Main application : wireless communication, PC, and LCDM; (8)RoHS Compliant / Pb Free.

Diagrams

7W-25.000MBA-T dimensions

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
7W-25.000MBA-T
7W-25.000MBA-T

TXC Corporation

Standard Clock Oscillators 9 25.000MHz 3.3V25ppm(-10 +70C)

Data Sheet

0-1: $1.79
1-10: $1.53
10-50: $1.26
50-100: $1.02
