Product Summary

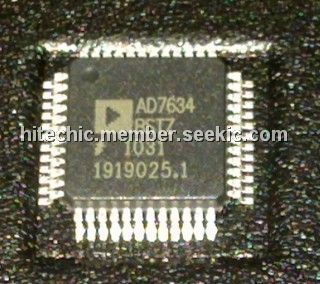

The AD7634BSTZ is an 18-bit, charge redistribution successive approximation register (SAR) architecture analog-todigital onverter(ADC) with programmable input ranges and mode selection via a dedicated write only serial interface (or by hardware pin-strapping). The AD7634BSTZ is fabricated on ADI patented iCMOS high voltage process. The device contains a high speed 18-bit sampling ADC, an internal conversion clock, an internal reference (and buffer), and both serial and parallel system interface ports. Power onsumption is automatically scaled with throughput (AD7634 in Impulse mode), making AD7634BSTZ ideal for battery-powered applications. It is available in Pb-free, 48-lead packages with operation specified from -40℃ to +85℃.
Parametrics
AD7634BSTZ absolute maximum ratings: (1)Analog Inputs/Outputs IN+, IN-, REF, REFBUFIN, TEMP, INGND, REFGND to AGND: AVDD + 0.3 V to AGND - 0.3 V ; (2)Ground Voltage Differences AGND, DGND, OGND: ±0.3 V ; (3)Supply Voltages, AVDD, DVDD: -0.3 V to +2.7 V ; (4)OVDD: -0.3 V to +3.8 V ; (5)AVDD to DVDD: ±2.8 V ; (6)AVDD, DVDD to OVDD: -3.8 V to +2.8 V ; (7)Digital Inputs -0.3 V to +5.5 V ; (8)PDREF, PDBUF: ±20 mA ; (9)Internal Power Dissipation: 700 mW ; (10)Internal Power Dissipation: 2.5 W ; (11)Junction Temperature: 125℃ ; (12)Storage Temperature Range: –65℃ to +125℃.
Features
AD7634BSTZ features: (1)Multiple pins/software programmable input ranges: ±10V, ±5V, 10V, 5V; (2)iCMOS process technology; (3)INL: ± 1.75 LSB (7± ppm of full scale) ; (4)DNL: +2/-1 LSB ; (5)18-bit resolution with no missing codes ; (6)Dynamic range: 102.5 dB typical ; (7)SNR: 101 dB typical ; (8)THD: -122 dB typical ; (9)5V internal reference: typical drift 7ppm/℃; TEMP output ; (10)No pipeline delay (SAR architecture) ; (11)Parallel (18, 16- or 8-bit bus) and serial 5 V/3.3 V interface ; (12)Pb-free 48-lead LQFP and LFCSP (7x7mm) packages ; (13)Pin compatible with other PulSAR ADCs.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 AD7634BSTZ |
|
IC ADC 18BIT DIFF BIPO 48-LQFP |
Data Sheet |
|
|
||||||
|
AD7634BSTZRL |
|
IC ADC 18BIT DIFF BIPO 48-LQFP |
Data Sheet |
|
|
||||||
