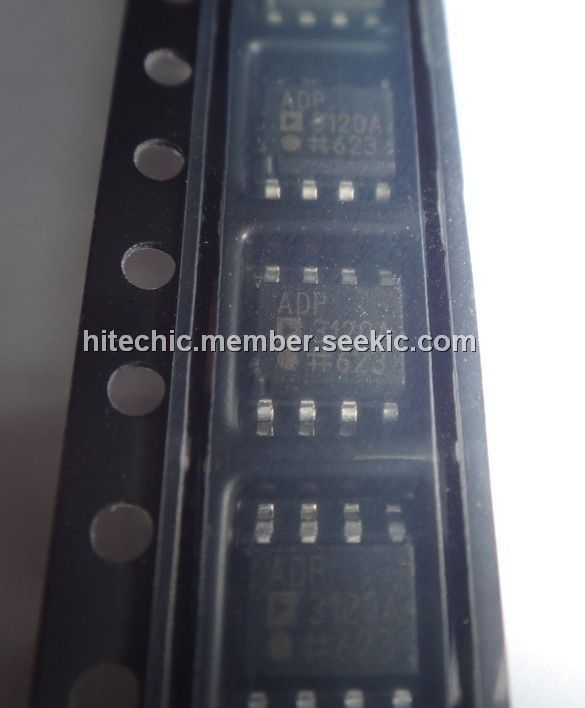

ADP3120A

high voltage MOSFET driver, 12 V, SOP, ADP3120A, Analog Devices

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.35~0.60 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.35~0.60

PartNumber:: ADP3120A

Brand:: Analog Devices - ADI | Pack: SOP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Lisa's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-12-29

From Other Seller

Part Number:ADP3120A
US $0.35 - 0.60
IRFP260N

US $1.30 - 4.20 / Piece
(0) Remove
TDA7360

US $0.80 - 1.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

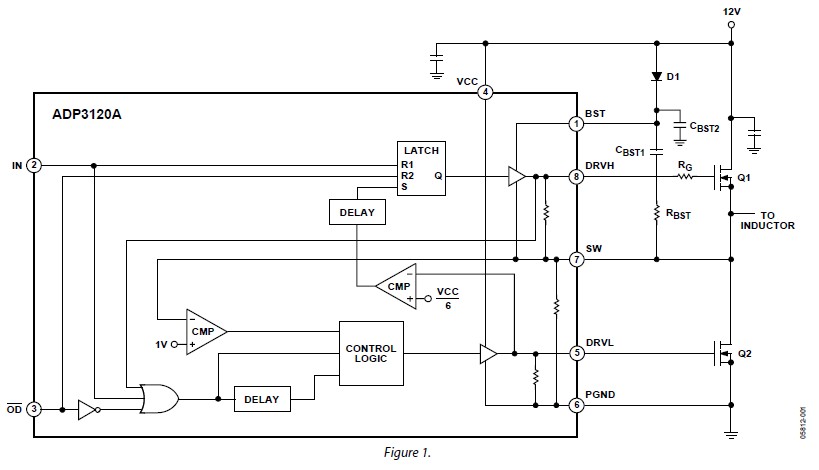

The ADP3120A is a dual, high voltage MOSFET driver optimized for driving two N-channel MOSFETs, the two switches in a nonisolated synchronous buck power converter. Each driver is capable of driving a 3000 pF load with a 45 ns propaga-tion delay and a 25 ns transition time. One of the drivers can be bootstrapped and is designed to handle the high voltage slew rate associated with floating high-side gate drivers. The ADP3120A includes overlapping drive protection to prevent shoot-through current in the external MOSFETs. Applications of the ADP3120A are Multiphase desktop CPU supplies, Single-supply synchronous buck converters.

Parametrics

ADP3120A absolute maximum ratings: (1)VCC: -0.3 V to +15 V; (2)BST DC: -0.3 V to VCC + 15 V; <200 ns: -0.3 V to +35 V; (3)BST to SW: -0.3 V to +15 V; (4)SW DC: -5 V to +15 V; <200 ns: -10 V to +25 V; (5)DRVH DC: SW - 0.3 V to BST + 0.3 V; <200 ns: SW - 2 V to BST + 0.3 V; (6)DRVL DC: -0.3 V to VCC + 0.3 V; <200 ns: -2 V to VCC + 0.3 V; (7)IN, OD: -0.3 V to +6.5 V; (8)θJA, SOIC_N 2-Layer Board: 123℃/W; 4-Layer Board: 90℃/W; (9)θJA, LFCSP_VD1 4-Layer Board: 50℃/W; (10)Operating Ambient Temperature Range: 0℃ to 85℃; (11)Junction Temperature Range: 0℃ to 150℃; (12)Storage Temperature Range: -65℃ to +150℃; (13)Lead Temperature Soldering (10 sec): 300℃; Vapor Phase (60 sec): 215℃; Infrared (15 sec): 260℃.

Features

ADP3120A features: (1)All-in-one synchronous buck driver; (2)Bootstrapped high-side drive; (3)One PWM signal generates both drives; (4)Anticross conduction protection circuitry; (5)OD for disabling the driver outputs: Meets CPU VR requirement when used with Analog Devices Flex -Mode controller.
