Product Summary

The ATTINY26L-8PC is a low-power CMOS 8-bit microcontroller based on the AVR enhanced RISC architecture. By executing powerful instructions in a single clock cycle, the ATTINY26L-8PC achieves throughputs approaching 1 MIPS per MHz allowing the system designer to optimize power consumption versus processing speed.

Parametrics

ATTINY26L-8PC absolute maximum ratings: (1)Operating Temperature: -55℃ to +125℃; (2)Storage Temperature: -65℃ to +150℃; (3)Voltage on Any Pin except RESET with Respect to Ground: -0.5V to VCC + 0.5V; (4)Voltage on RESET with Respect to Ground: -0.5V to +13.0V; (5)Maximum Operating Voltage: 6.0V; (6)DC Current per I/O Pin: 40.0 mA; (7)DC Current VCC and GND Pins: 200.0 mA.

Features

ATTINY26L-8PC features: (1)High-performance, Low-power AVR?8-bit Microcontroller; (2)RISC Architecture: 118 Powerful Instructions-Most Single Clock Cycle Execution, 32 x 8 General Purpose Working Registers, Fully Static Operation, Up to 16 MIPS Throughput at 16 MHz; (3)Data and Non-volatile Program Memory: 2K Bytes of In-System Programmable Program Memory Flash, Endurance: 10,000 Write/Erase Cycle, 128 Bytes of In-System Programmable EEPROM Endurance: 100,000 Write/Erase Cycles, 128 Bytes Internal SRAM, Programming Lock for Flash Program and EEPROM Data Security.

Diagrams

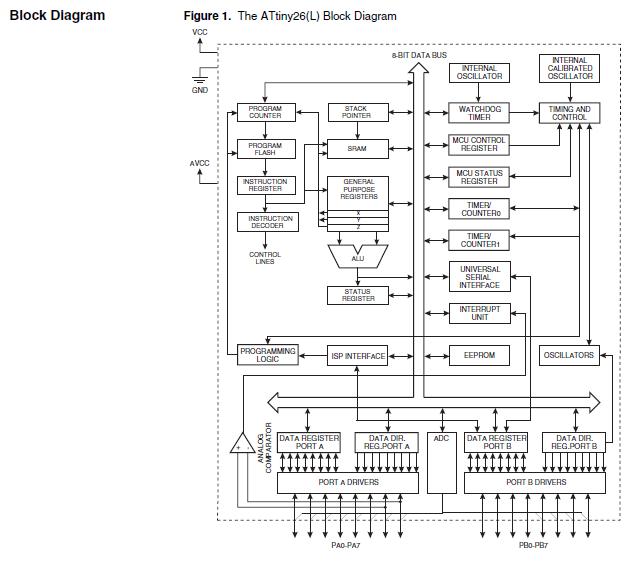

ATTINY26L-8PC block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
ATtiny26L-8PC
ATtiny26L-8PC

Atmel

8-bit Microcontrollers (MCU) AVR 2K FLSH 128B EE 128B SRAM ADC 3V

Data Sheet

Negotiable
