Product Summary

The BC846B NPN transistor is in a SOT23 plastic package. The applications of the BC846B include General purpose switching and amplification.

Parametrics

BC846B absolute maximum ratings: (1)collector-base voltage open emitter: 80 V; (2)collector-emitter voltage open base: 65 V; (3)emitter-base voltage open collector: 6 V; (4)collector current (DC): 100 mA; (5)peak collector current: 200 mA; (6)peak base current: 200 mA; (7)total power dissipation Tamb ≤ 25 ℃: 250 mW; (8)storage temperature: -65 to +150 ℃; (9)junction temperature: - 150 ℃; (10)operating ambient temperature: -65 to +150 ℃.

Features

BC846B features: (1)Low current (max. 100 mA); (2)Low voltage (max. 65 V).

Diagrams

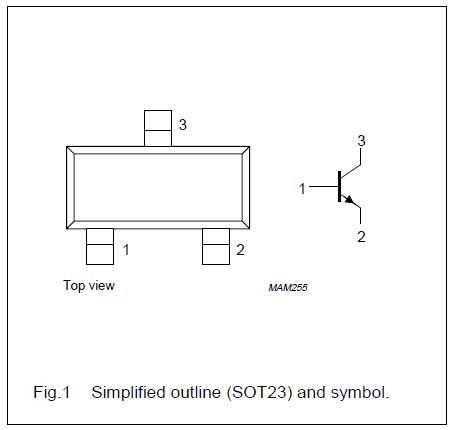

BC846B block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
BC846B /T3
BC846B /T3

NXP Semiconductors

Transistors Bipolar (BJT) TRANS GP TAPE-13

Data Sheet

Negotiable
BC846B,215
BC846B,215

NXP Semiconductors

Transistors Bipolar (BJT) NPN GP 100MA 65V

Data Sheet

0-1: $0.03
1-25: $0.01
25-100: $0.01
100-500: $0.01
BC846B,235
BC846B,235

NXP Semiconductors

Transistors Bipolar (BJT) TRANS GP TAPE-13

Data Sheet

0-1: $0.07
1-25: $0.07
25-100: $0.05
100-250: $0.03
BC846B_D87Z
BC846B_D87Z

Fairchild Semiconductor

Transistors Bipolar (BJT) SOT-23 NPN GP AMP

Data Sheet

Negotiable
BC846B-7-F
BC846B-7-F

Diodes Inc.

Transistors Bipolar (BJT) BIPOLAR TRANSISTOR NPN SOT-23

Data Sheet

0-1: $0.28
1-10: $0.17
10-100: $0.08
100-250: $0.05
BC846BDW1T1
BC846BDW1T1

ON Semiconductor

Transistors Bipolar (BJT) 100mA 80V Dual NPN

Data Sheet

Negotiable
BC846BDW1T1G
BC846BDW1T1G

ON Semiconductor

Transistors Bipolar (BJT) 100mA 80V Dual NPN

Data Sheet

0-1: $0.16
1-25: $0.10
25-100: $0.08
100-500: $0.04
BC846BLP4-7B
BC846BLP4-7B


TRANS NPN 65V 100MA X2-DFN1006-3

Data Sheet

0-1: $0.19
1-10: $0.17
10-25: $0.12
25-100: $0.09
100-250: $0.06
250-500: $0.05
500-1000: $0.03
1000-2500: $0.03
2500-5000: $0.03
