Product Summary

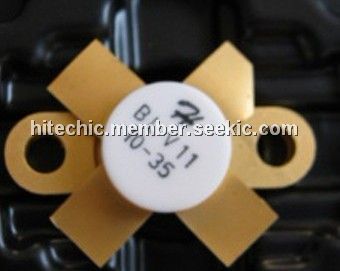

The BLV11 is an NPN silicon RF power transistor. It is designed for Class C, 12.5 Volt operation in FM Amplifier Applications up to 250 MHz.

Parametrics

BLV11 absolute maximum ratings: (1)IC: 3.0 A; (2)VCB: 36 V; (3)VCE: 18 V; (4)PDISS: 37 W @ TC = 25 ℃; (5)TJ: -65 ℃ to +200 ℃; (6)TSTG: -65 ℃ to +150 ℃; (7)θJC: 4.6 ℃/W.

Features

BLV11 features: (1)PG = 9.0 dB Typical at 175 MHz; (2)Emitter Ballasting; (3)Omnigold Metalization System.

Diagrams

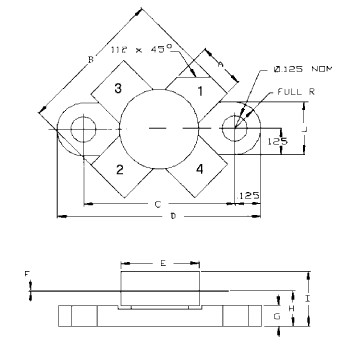

BLV11 dimensions

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
BLV11
BLV11
Advanced Semiconductor, Inc.
Transistors RF Bipolar Power RF Transistor
Data Sheet
0-1: $39.60
1-10: $33.00
10-25: $29.70
25-50: $26.40
