Product Summary

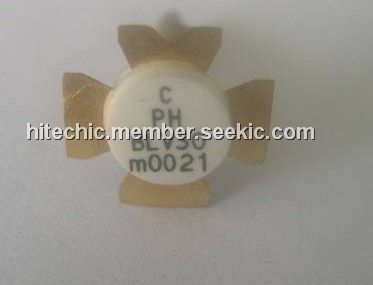

The BLV30 is a NPN silicon RF power transistor. It is Designed for Television Band IV & V Applications up to 860 MHz.
Parametrics
BLV30 absolute maximum ratings: (1)IC: 1.5 A; (2)VCBO: 60 V; (3)VCEO: 30 V; (4)VEBO: 4.0 V; (5)PDISS: 15.9 W @ TC = 25 ℃; (6)TJ: -65 ℃ to +200 ℃; (7)TSTG: -65 ℃ to +150 ℃; (8)θJC: 10 ℃/W.
Features
BLV30 features: (1)Common Emitter; (2)PG = 10 dB at 2.0 W/860 MHz; (3)Omnigold Metalization System.
Diagrams
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
![]() BLV30 |
![]() Other |
![]() |
![]() Data Sheet |
![]() Negotiable |
|
||||||||||||
