Product Summary

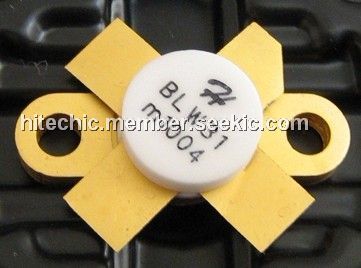

The BLW31 is an NPN silicon RF power transistor. It is designed for 108-175 MHz applications. The BLW31 utilizes diffused emitter resistors to achieve good VSWR capability.
Parametrics
BLW31 absolute maximum ratings: (1)IC: 4.0 A; (2)VCBO: 36 V; (3)VCEO: 18 V; (4)VEBO: 4.0 V; (5)PDISS: 40 W @ TC = 25 ℃; (6)TJ: -65 ℃ to +200 ℃; (7)TSTG: -65 ℃ to +150 ℃; (8)θJC: 4.4 ℃/W.
Features
BLW31 features: (1)Common Emitter-Class-C; (2)PG = 10 dB at 30 W/150 MHz; (3)Omnigold Metalization System.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 BLW31 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
