Product Summary

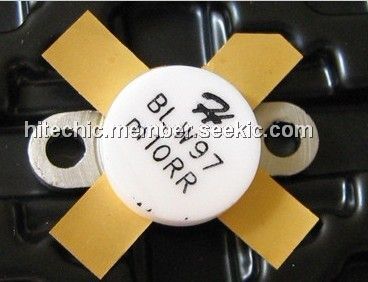

The BLW97 is an NPN silicon RF power transistor. It is designed for High voltage applications up tp 30 MHz.
Parametrics
BLW97 absolute maximum ratings: (1)IC: 15 A; (2)VCESM: 65 V; (3)VCEO: 33 V; (4)VEBO: 4.0 V; (5)PDISS: 230 W @ TC = 25 ℃; (6)TJ: -65 ℃ to +200 ℃; (7)TSTG: -65 ℃ to +150 ℃; (8)θJC: 0.76 ℃/W.
Features
BLW97 features: (1)PG = 11.5 dB min. at 175 W/30 MHz; (2)IMD3 = -30 dBc max. at 175 W(PEP); (3)Omnigold Metalization System.

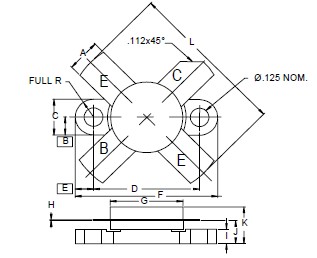

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 BLW97 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
