Product Summary

The PCA9534D is a 16-pin CMOS device that provides 8 bits of General Purpose parallel Input/Output (GPIO) expansion for I2C-bus/SMBus applications and was developed to enhance the NXP Semiconductors family of I2C-bus I/O expanders. The improvements of PCA9534D include higher drive capability, 5 V I/O tolerance, lower supply current, individual I/O configuration, 400 kHz clock frequency, and smaller packaging. I/O expanders provide a simple solution when additional I/O is needed for ACPI power switches, sensors, push buttons, LEDs, fans, etc.

Parametrics

PCA9534D absolute maximum ratings: (1)supply voltage: -0.5 to +6.0 V; (2)input current: ±20 mA; (3)voltage on an input/output pin VSS: - 0.5 to 5.5 V; (4)output current on pin IOn: ±50 mA; (5)supply current: 85 mA; (6)ground supply current: 100 mA; (7)total power dissipation: 200 mW; (8)storage temperature: -65 to +150 ℃; (9)ambient temperature: -40 to +85 ℃.

Features

PCA9534D features: (1)8-bit I2C-bus GPIO; (2)Operating power supply voltage range of 2.3 V to 5.5 V; (3)5 V tolerant I/Os; (4)Polarity Inversion register; (5)Active LOW interrupt output; (6)Low standby current; (7)Noise filter on SCL/SDA inputs; (8)No glitch on power-up; (9)Internal power-on reset.

Diagrams

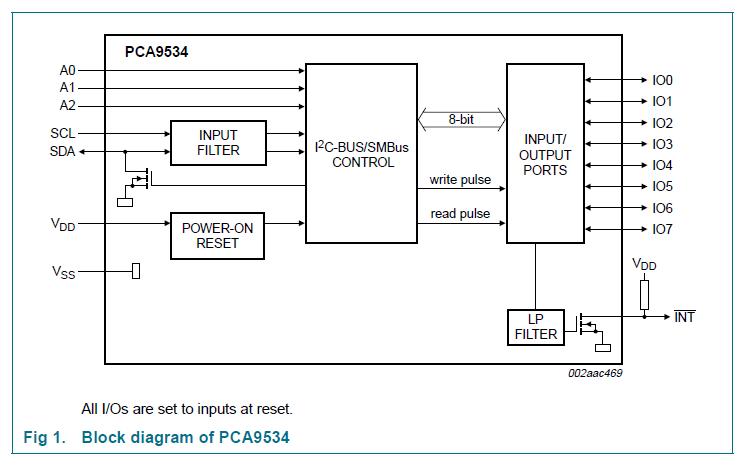

PCA9534D block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
PCA9534D
PCA9534D

NXP Semiconductors

I/O Expanders, Repeaters & Hubs 8BIT I2C/SMBUS I/O PORT-INTER

Data Sheet

Negotiable
PCA9534DGVRG4
PCA9534DGVRG4

Texas Instruments

I/O Expanders, Repeaters & Hubs Remote 8B I2C & Lo- Pwr I/O Expander

Data Sheet

0-1590: $0.57
1590-2000: $0.56
2000-5000: $0.56
PCA9534DWG4
PCA9534DWG4

Texas Instruments

I/O Expanders, Repeaters & Hubs Rem 8B I2C & Lo-Pwr I/O Expander

Data Sheet

0-1: $1.18
1-25: $1.08
25-100: $0.75
100-250: $0.73
PCA9534DWR
PCA9534DWR

Texas Instruments

I/O Expanders, Repeaters & Hubs Remote 8B I2C & Lo- Pwr I/O Expander

Data Sheet

0-1430: $0.63
1430-2000: $0.59
2000-5000: $0.56
5000-10000: $0.56
PCA9534DWRG4
PCA9534DWRG4

Texas Instruments

I/O Expanders, Repeaters & Hubs Remote 8B I2C & Lo- Pwr I/O Expander

Data Sheet

0-1540: $0.59
1540-2000: $0.58
2000-5000: $0.58
5000-10000: $0.56
PCA9534DW
PCA9534DW

Texas Instruments

I/O Expanders, Repeaters & Hubs Rem 8B I2C & Lo-Pwr I/O Expander

Data Sheet

0-1: $1.18
1-25: $1.08
25-100: $0.75
100-250: $0.73
PCA9534DBRG4
PCA9534DBRG4

Texas Instruments

I/O Expanders, Repeaters & Hubs Remote 8B I2C & Lo- Pwr I/O Expander

Data Sheet

0-1590: $0.57
1590-2000: $0.56
2000-5000: $0.56
PCA9534DBR
PCA9534DBR

Texas Instruments

I/O Expanders, Repeaters & Hubs Remote 8B I2C & Lo- Pwr I/O Expander

Data Sheet

0-1430: $0.63
1430-2000: $0.59
2000-5000: $0.56
5000-10000: $0.56
