Product Summary

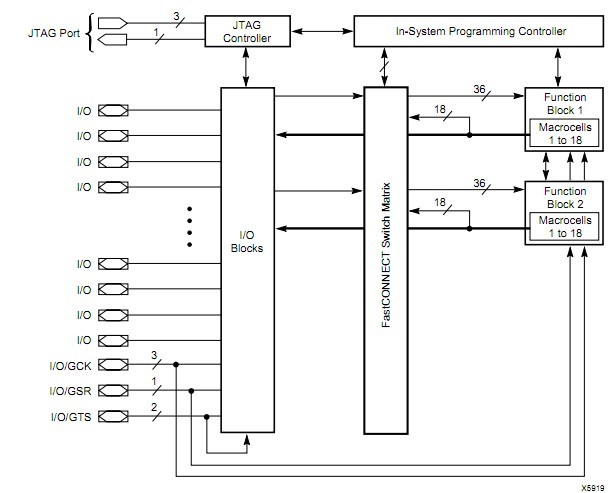

The XC9536-15PCG44C is a high-performance CPLD providing advanced in-system programming and test capabilities for general purpose logic integration. The XC9536-15PCG44C is comprised of two 36V18 Function Blocks, providing 800 usable gates with propagation delays of 5 ns. See Figure 2 for the architecture overview.

Parametrics

XC9536-15PCG44C absolute maximum ratings: (1)VCC Supply voltage relative to GND: -0.5 to 7.0 V; (2)VIN DC input voltage relative to GND: -0.5 to VCC + 0.5 V; (3)VTS Voltage applied to 3-state output with respect to GND: -0.5 to VCC + 0.5 V; (4)TSTG Storage temperature: -65 to +150℃; (5)TSOL Max soldering temperature (10 s @ 1/16 in = 1.5 mm): +260℃.

Features

XC9536-15PCG44C features: (1)5 ns pin-to-pin logic delays on all pins; (2)fCNT to 100 MHz; (3)36 macrocells with 800 usable gates; (4)Up to 34 user I/O pins; (5)Enhanced pin-locking architecture; (6)Extensive IEEE Std 1149.1 boundary-scan (JTAG) support; (7)Programmable power reduction mode in each macrocell; (8)Slew rate control on individual outputs; (9)User programmable ground pin capability; (10)Extended pattern security features for design protection; (11)High-drive 24 mA outputs; (12)3.3 V or 5 V I/O capability; (13)Advanced CMOS 5V FastFLASH technology.

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

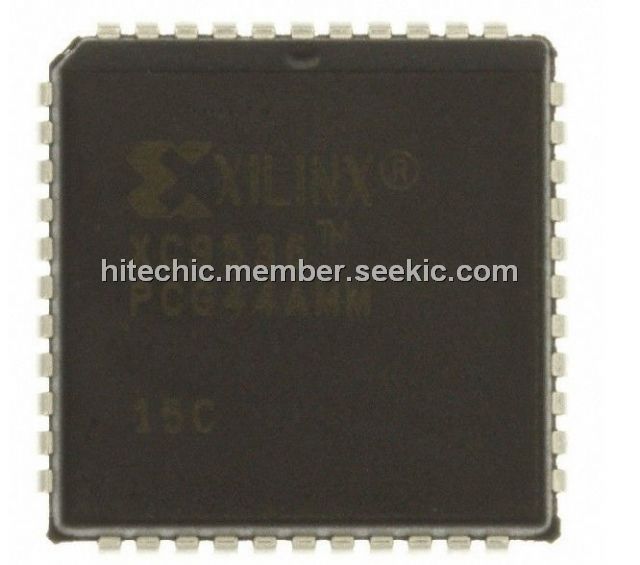

XC9536-15PCG44C
XC9536-15PCG44C

IC CPLD 36MCRCELL 15NS 44PLCC
Data Sheet
Negotiable
