Product Summary

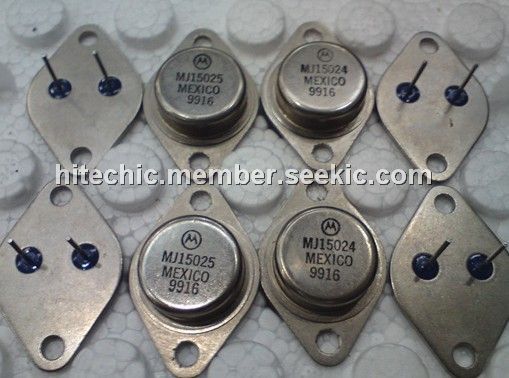

The MJ15024 is a NPN planar silicon transistor.
Parametrics
MJ15024 absolute maximum ratings: (1)Collector-Base Voltage VCBO: 400V; (2)Collector-Emitter Voltage VCEO: 250V; (3)Emitter-Base voltage VEBO: 7; (4)Collector Current (DC) IC: 16A; (5)Collector Dissipation PC: 250W; (6)Junction Temperature Tj: 150℃; (7)Storage Temperature Tstg: -50~150℃.
Features
MJ15024 features: (1)High Current Capability; (2)High Power Dissipation; (3)Complementary to MJ15025.

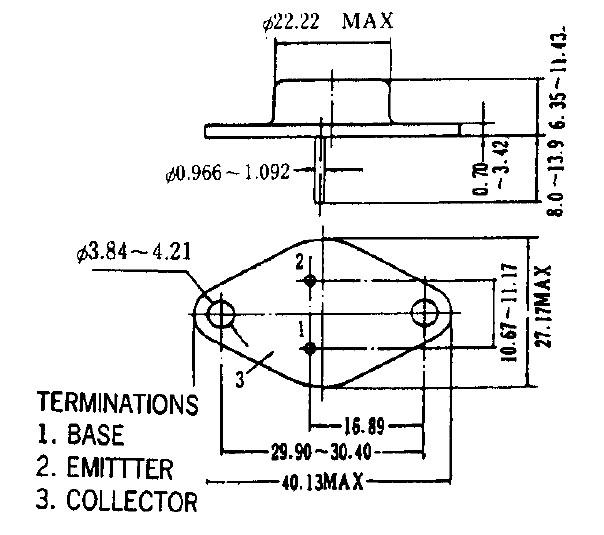

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MJ15024G |
ON Semiconductor |
Transistors Bipolar (BJT) 16A 250V 250W NPN |
Data Sheet |
|
|
||||||||||||
|
MJ15024 |
ON Semiconductor |
Transistors Bipolar (BJT) 16A 250V 250W NPN |
Data Sheet |
Negotiable |
|
||||||||||||
